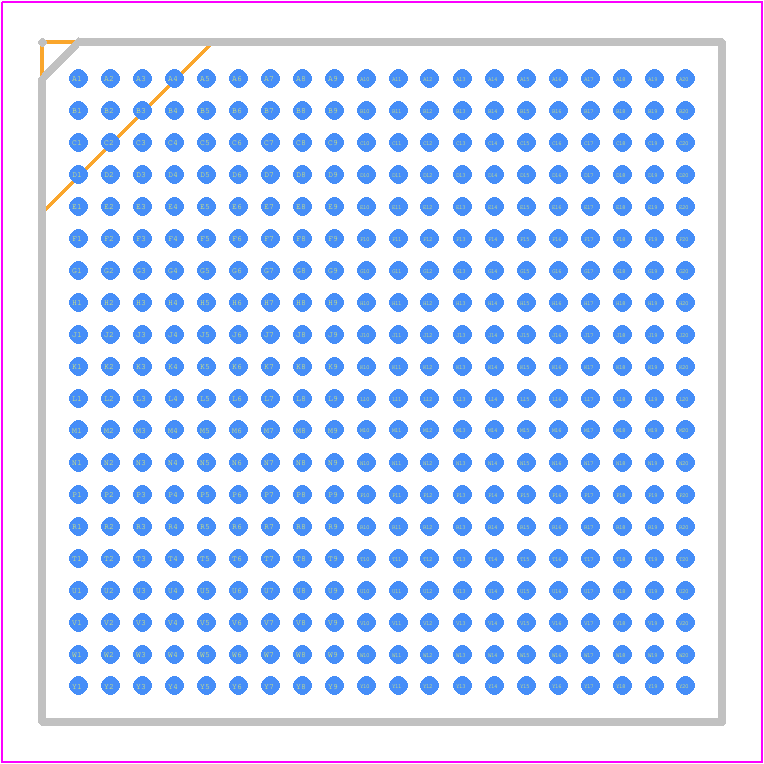

PCB Footprints
XC7Z020-L1CLG400I - AMD PCB footprint - BGA - BGA - CLG400I
click to zoom
3D Models
XC7Z020-L1CLG400I - AMD  - 3D model - BGA - CLG400I
click to zoom

XC7Z020-L1CLG400I Details

  • Manufacturer Part Number:

    XC7Z020-L1CLG400I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Combinatorial Delay of a CLB-Max:

    1.27 ns

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    6650

  • Number of Inputs:

    253

  • Number of Logic Cells:

    85000

  • Number of Outputs:

    253

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    6650 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    0.98 V

  • Supply Voltage-Min:

    0.92 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

XC7Z020-L1CLG400I Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the XC7Z020-L1CLG400I is 330 MHz, but it depends on the specific application and design implementation.
  • You can implement DDR3 memory interface using the Memory Interface Generator (MIG) tool in Vivado Design Suite, which provides a wizard-based interface to generate the necessary IP cores and constraints.
  • The power consumption of the XC7Z020-L1CLG400I depends on the specific application, clock frequency, and operating conditions. However, the typical static power consumption is around 1.5W, and the dynamic power consumption can range from 2W to 10W or more, depending on the design.
  • Yes, the XC7Z020-L1CLG400I has built-in transceivers that support high-speed serial interfaces like PCIe Gen2 and SATA II. However, you may need to use additional IP cores and design expertise to implement these interfaces correctly.
  • Xilinx provides a range of security features, including bitstream encryption, secure boot, and anti-tamper features. You can also use third-party IP cores and design techniques to enhance the security of your design.
