DIMENSION CONSIDER BASED ON LINK HTTP://WWW.TI.COM/LIT/DS/SYMLINK/CC1312R.PDF
JESD-30 Code:
S-PQCC-N48
JESD-609 Code:
e4
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Voltage-Max:
3.8 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
uPs/uCs/Peripheral ICs Type:
SoC
XCC1312R1F3RGZR Frequently Asked Questions (FAQs)
For optimal performance, it's recommended to follow Texas Instruments' recommended PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be used to improve heat dissipation.
To ensure reliable wireless connectivity, it's essential to follow proper antenna design and placement guidelines, use a suitable wireless protocol, and implement frequency hopping and adaptive frequency selection to minimize interference. Additionally, using a shielded enclosure and keeping the device away from other wireless devices can help reduce interference.
The XCC1312R1F3RGZR has a low power consumption of approximately 5.5mA in receive mode and 20mA in transmit mode. Battery life expectations vary depending on the application, but with a 1000mAh battery, you can expect around 1-2 years of battery life with moderate usage.
To implement secure wireless communication, use encryption protocols such as AES-128 or AES-256, and implement secure key exchange and authentication mechanisms. Additionally, use secure boot mechanisms and ensure that firmware updates are secure and authenticated.
The XCC1312R1F3RGZR has an operating temperature range of -40°C to 85°C and a storage temperature range of -40°C to 125°C. It's essential to ensure that the device operates within these temperature ranges to ensure reliable performance and longevity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCC1312R1F3RGZR Overview

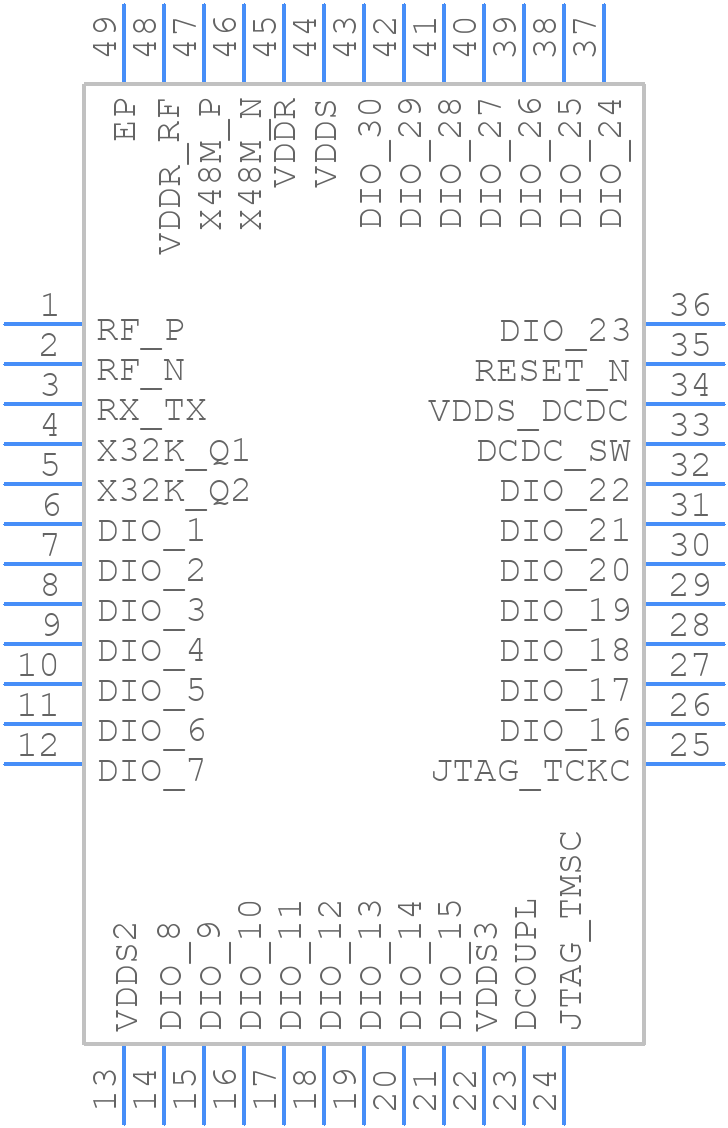

Use the download button to access the XCC1312R1F3RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCC13,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
