XCC1352P1F3RGZR - Texas Instruments

Description: SimpleLink™ Multi-band CC1352P Wireless MCU With Integrated Power Amplifier

Download XCC1352P1F3RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

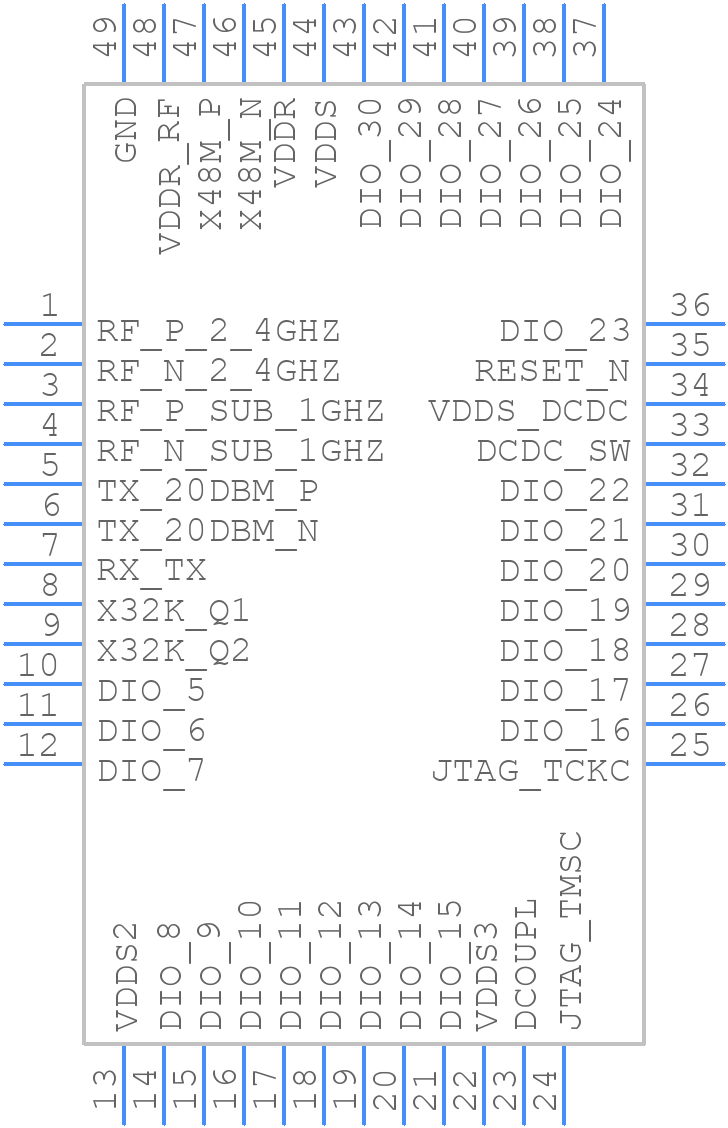

XCC1352P1F3RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XCC1352P1F3RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ (S-PVQFN-N48)
click to zoom
3D Models
XCC1352P1F3RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ (S-PVQFN-N48)
click to zoom

XCC1352P1F3RGZR Details

  • Manufacturer Part Number:

    XCC1352P1F3RGZR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-48

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    26

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    81920

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    48 MHz

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XCC1352P1F3RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in the XCC1352P1F3RGZR datasheet, but for optimal performance, it's recommended to follow the guidelines in the TI's 'CC1352P1F3RGZR PCB Layout Guidelines' application note (SWRA592).
  • TI provides an antenna design guide in the 'CC1352P1F3RGZR Antenna Design Guide' application note (SWRA593). It's recommended to follow the guidelines for optimal antenna performance.
  • The XCC1352P1F3RGZR has an operating temperature range of -40°C to 85°C, as specified in the datasheet. However, it's recommended to consult the 'CC1352P1F3RGZR Reliability Report' (SLYZ011) for more detailed information on temperature-related specifications.
  • TI provides a secure boot and firmware update guide in the 'CC1352P1F3RGZR Secure Boot and Firmware Update' application note (SWRA594). It's recommended to follow the guidelines for secure firmware updates and boot mechanisms.
  • The recommended power supply decoupling capacitors for the XCC1352P1F3RGZR are 10uF and 100nF capacitors, as specified in the datasheet. However, it's recommended to consult the 'CC1352P1F3RGZR Power Supply Decoupling Capacitor Guide' application note (SWRA595) for more detailed information.
