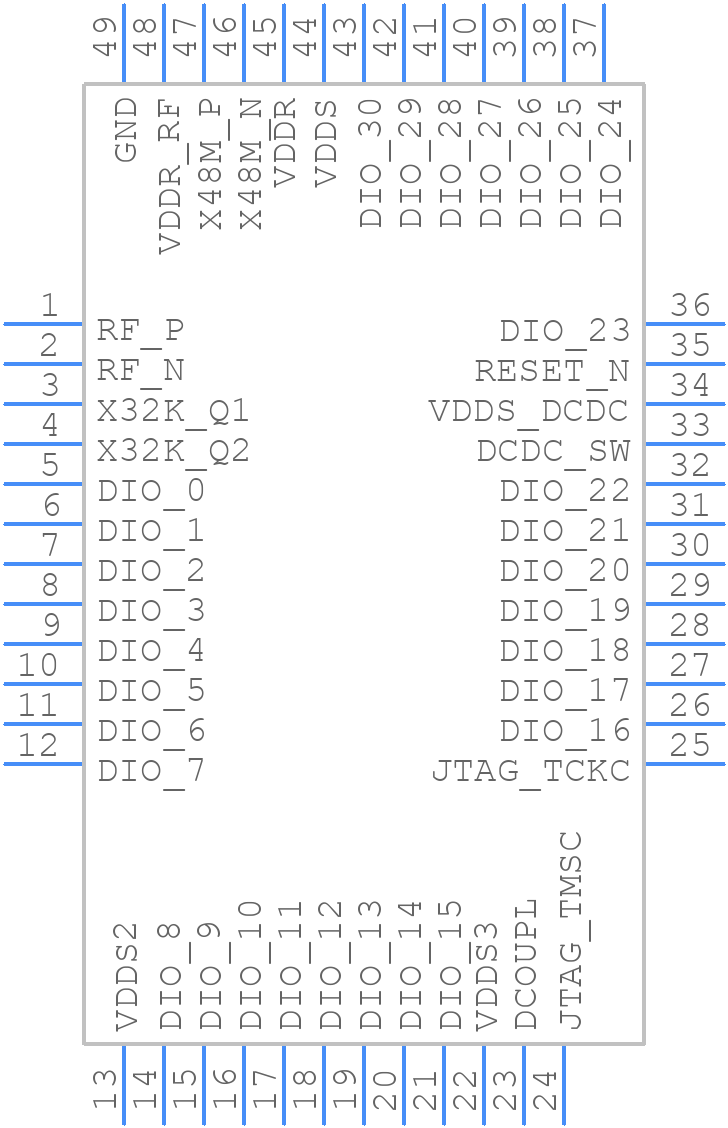

XCC2652R1FRGZR - Texas Instruments

XCC2652R1FRGZR Details

• Manufacturer Part Number:

  XCC2652R1FRGZR

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  VQFN-48

• HTS Code:

  8542.31.00.25

• Date Of Intro:

  2018-01-26

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  IT ALSO HAS 256KB ROM

• Bit Size:

  32

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQCC-N48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  31

• Number of Terminals:

  48

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.28SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  81920

• ROM (words):

  360448

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1 mm

• Speed:

  48 MHz

• Supply Voltage-Max:

  3.8 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
