The maximum power consumption of the XCKU035-2SFVA784I is approximately 12W, but it can vary depending on the design, clock frequency, and operating conditions.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible. Additionally, consider using the AMD-provided power optimization IP cores and following the Xilinx Power Management Guide.
The maximum operating temperature of the XCKU035-2SFVA784I is 100°C (industrial grade) or 125°C (extended temperature range). However, it's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
The XCKU035-2SFVA784I is not a radiation-hardened device. For radiation-hardened applications, consider using AMD's QPro or RT Pro devices, which are designed to meet the requirements of aerospace, defense, and high-reliability applications.
To ensure signal integrity, follow the guidelines in the Xilinx Signal Integrity Guide, use the IBIS model for simulation, and consider using the AMD-provided signal integrity IP cores. Additionally, ensure proper PCB design, routing, and termination to minimize signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCKU035-2SFVA784I Overview

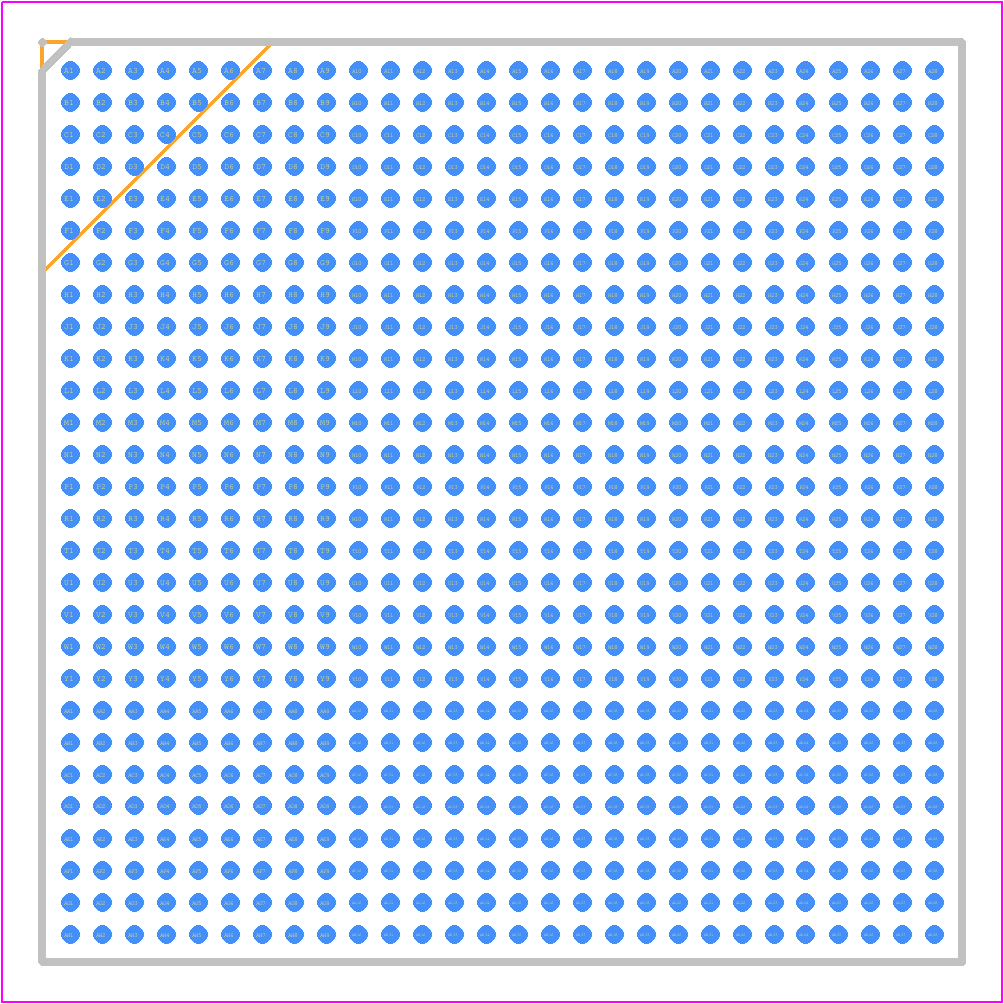

Use the download button to access the XCKU035-2SFVA784I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCKU0,
or try a keyword search, such as Field Programmable Gate Arrays
