XCKU040-2SFVA784E - AMD

Description: FPGA - Field Programmable Gate Array XCKU040-2SFVA784E

Download XCKU040-2SFVA784E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

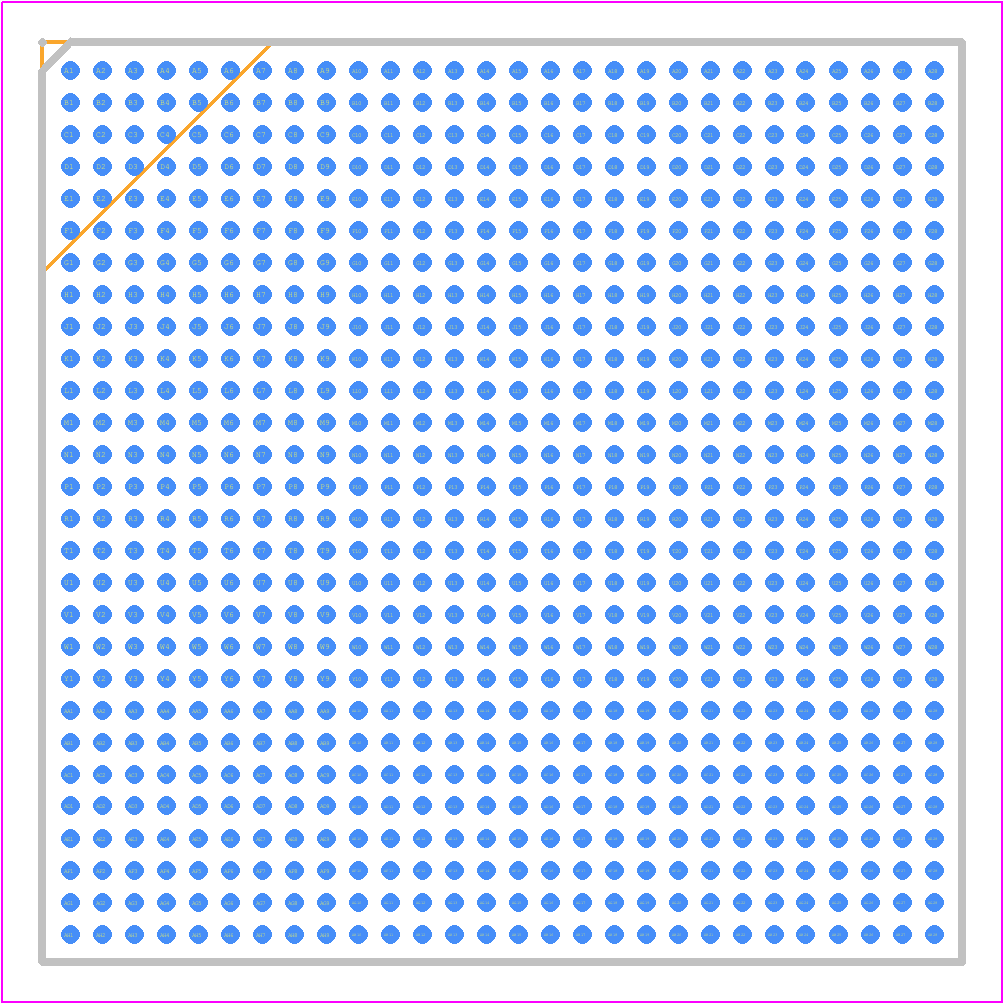

XCKU040-2SFVA784E - AMD PCB footprint - BGA - BGA - SFVA784
click to zoom
3D Models
XCKU040-2SFVA784E - AMD  - 3D model - BGA - SFVA784
click to zoom

XCKU040-2SFVA784E Details

  • Manufacturer Part Number:

    XCKU040-2SFVA784E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-784

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B784

  • JESD-609 Code:

    e1

  • Length:

    23 mm

  • Number of CLBs:

    30300

  • Number of Inputs:

    520

  • Number of Logic Cells:

    530250

  • Number of Outputs:

    520

  • Number of Terminals:

    784

  • Operating Temperature-Max:

    100 °C

  • Organization:

    30300 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA784,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.52 mm

  • Supply Voltage-Max:

    0.979 V

  • Supply Voltage-Min:

    0.922 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    23 mm

XCKU040-2SFVA784E Frequently Asked Questions (FAQs)

  • The maximum power consumption of the XCKU040-2SFVA784E is approximately 12W, but it can vary depending on the design, clock frequency, and operating conditions.
  • To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible. Additionally, consider using the FPGA's built-in power management features, such as dynamic voltage and frequency scaling.
  • The maximum operating temperature of the XCKU040-2SFVA784E is 100°C (industrial grade) or 125°C (extended temperature range). However, it's recommended to operate the device within the specified temperature range to ensure reliability and performance.
  • No, the XCKU040-2SFVA784E is not a radiation-hardened device. If you need a radiation-hardened FPGA, consider using a device from Xilinx's QPro or RT ProASIC series.
  • The maximum clock frequency supported by the XCKU040-2SFVA784E is 500 MHz, but it can vary depending on the specific design, routing, and operating conditions.
