XCKU040-2SFVA784I - AMD

Description: FPGA - Field Programmable Gate Array XCKU040-2SFVA784I

Download XCKU040-2SFVA784I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

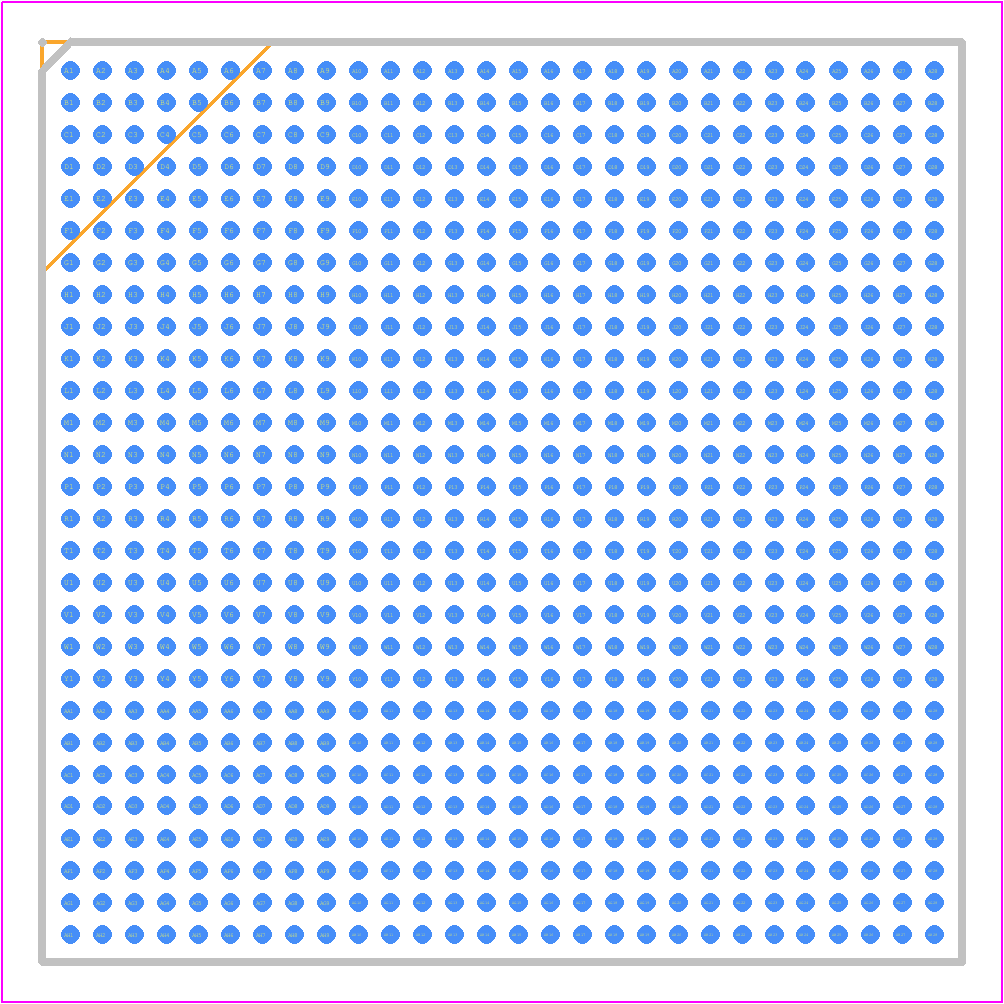

XCKU040-2SFVA784I - AMD PCB footprint - BGA - BGA - XCKU040-2SFVA784I
click to zoom
3D Models
XCKU040-2SFVA784I - AMD  - 3D model - BGA - XCKU040-2SFVA784I
click to zoom

XCKU040-2SFVA784I Details

  • Manufacturer Part Number:

    XCKU040-2SFVA784I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-784

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B784

  • JESD-609 Code:

    e1

  • Length:

    23 mm

  • Number of CLBs:

    30300

  • Number of Inputs:

    520

  • Number of Logic Cells:

    530250

  • Number of Outputs:

    520

  • Number of Terminals:

    784

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    30300 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA784,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.52 mm

  • Supply Voltage-Max:

    0.979 V

  • Supply Voltage-Min:

    0.922 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    23 mm

XCKU040-2SFVA784I Frequently Asked Questions (FAQs)

  • The maximum power consumption of the XCKU040-2SFVA784I is approximately 12W, but it can vary depending on the design, clock frequency, and operating conditions.
  • To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible. Additionally, consider using the AMD-provided power optimization IP cores.
  • The maximum operating temperature of the XCKU040-2SFVA784I is 100°C (industrial grade) or 125°C (extended temperature range). However, it's recommended to operate the device within the recommended temperature range for optimal performance and reliability.
  • The XCKU040-2SFVA784I is not a radiation-hardened device. For radiation-hardened applications, consider using AMD's QPro or QV devices, which are designed for high-reliability and radiation-tolerant applications.
  • The maximum clock frequency supported by the XCKU040-2SFVA784I is 500 MHz, but it can vary depending on the specific design, routing, and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCKU040-2SFVA784I Overview

Use the download button to access the XCKU040-2SFVA784I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCKU0, or try a keyword search, such as Field Programmable Gate Arrays

Parts related to XCKU040-2SFVA784I

Showing 0 results

XCKU040-2SFVA784I Alternates

Showing results

Image Part Number Model
Part Image XCKU040-2SFVA784E AMD Xilinx

Field Programmable Gate Array, 30300 CLBS, 530250-Cell, PBGA784
