XCVU13P-1FHGA2104I - AMD

Description: IC FPGA 832 I/O 2104FCBGA

Download XCVU13P-1FHGA2104I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

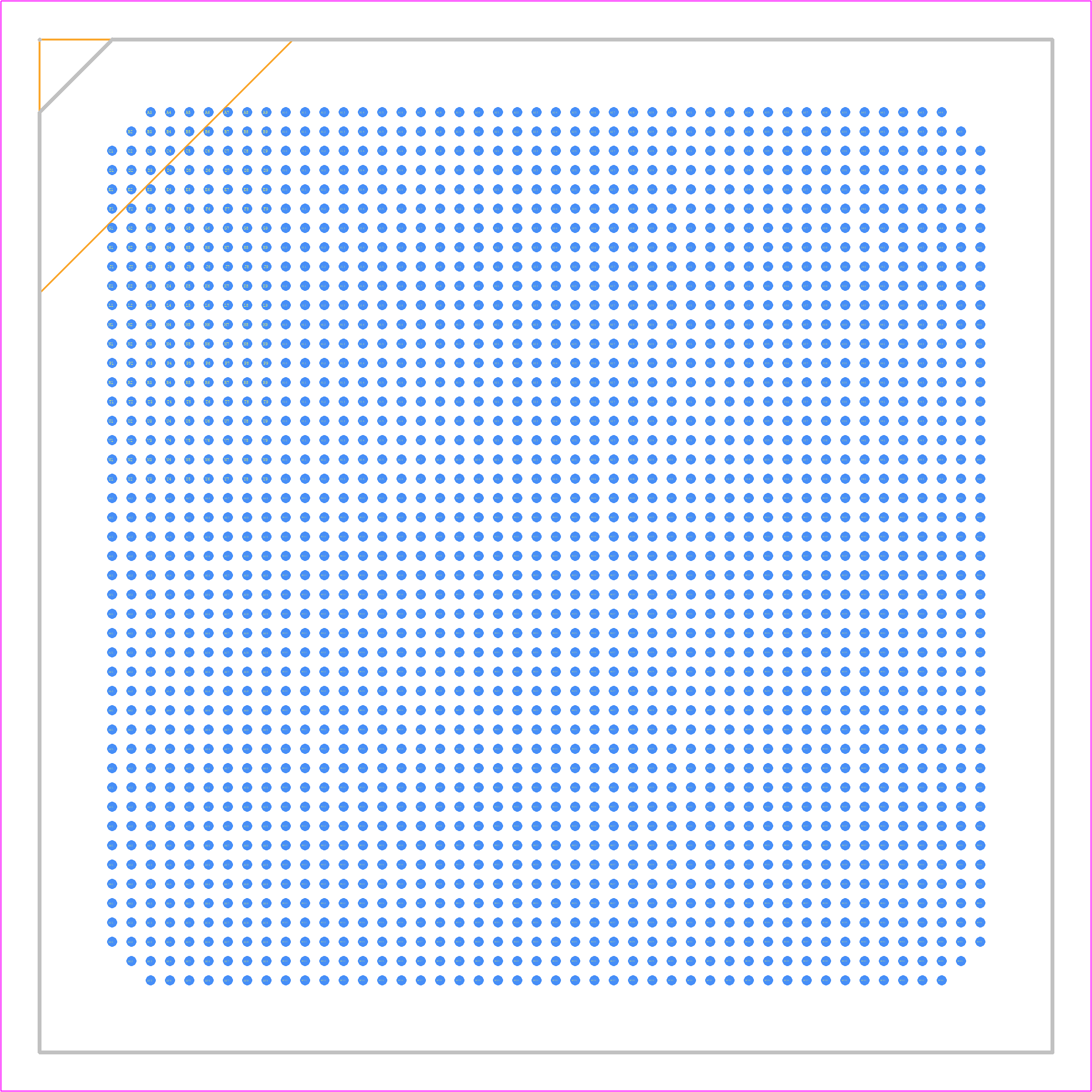

XCVU13P-1FHGA2104I - AMD PCB footprint - BGA - BGA - FHGA2104_2021
click to zoom
3D Models
XCVU13P-1FHGA2104I - AMD  - 3D model - BGA - FHGA2104_2021
click to zoom

XCVU13P-1FHGA2104I Details

  • Manufacturer Part Number:

    XCVU13P-1FHGA2104I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-2104

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B2104

  • Length:

    52.5 mm

  • Number of CLBs:

    216000

  • Number of Inputs:

    832

  • Number of Logic Cells:

    3780000

  • Number of Outputs:

    832

  • Number of Terminals:

    2104

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    216000 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA2104,46X46,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    4.24 mm

  • Supply Voltage-Max:

    0.876 V

  • Supply Voltage-Min:

    0.825 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    52.5 mm

XCVU13P-1FHGA2104I Frequently Asked Questions (FAQs)

  • The maximum power consumption of the XCVU13P-1FHGA2104I is approximately 25W, but it can vary depending on the specific design, clock frequency, and operating conditions.
  • To optimize power consumption, use the Vivado Power Analysis tool, enable power gating, reduce clock frequencies, and use low-power modes when possible. Additionally, consider using the AMD Power Estimator (APE) tool to estimate power consumption early in the design cycle.
  • The maximum operating temperature of the XCVU13P-1FHGA2104I is 100°C (industrial grade) or 125°C (extended temperature range). However, it's recommended to operate the device within the recommended temperature range of 0°C to 85°C for optimal performance and reliability.
  • To ensure signal integrity, use the Vivado Design Suite to analyze and optimize signal routing, use differential signaling where possible, and follow AMD's guidelines for signal integrity and PCB design.
  • AMD provides guidelines for PCB layout and stackup in the XCVU13P-1FHGA2104I datasheet and user manual. In general, a 4-6 layer PCB with a thickness of 0.8-1.2 mm is recommended, with a solid ground plane and careful routing of high-speed signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
