AMD provides a PCB design guide and layout recommendations in the XCVU13P FPGA PCB Design Guide (UG575) and the 7 Series FPGAs PCB Design and Pin Planning Guide (UG583). Additionally, AMD recommends using a 6-8 layer PCB stackup with a minimum of two power planes and two ground planes.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption and follow the power reduction techniques outlined in the XCVU13P FPGA Power Management Guide (UG574). For thermal management, ensure good airflow, use a heat sink, and follow the thermal design guidelines in the XCVU13P FPGA Package and Thermal Design Guide (UG576).
AMD recommends using a single, high-quality clock source and distributing it to the FPGA using a clock tree. For reset strategies, use a synchronous reset and follow the guidelines outlined in the XCVU13P FPGA Clocking and Reset Guide (UG577).
To ensure signal integrity, follow the guidelines in the XCVU13P FPGA Signal Integrity Guide (UG578) and use IBIS models to simulate signal behavior. For EMI minimization, use a shielded enclosure, follow the PCB design guidelines, and use EMI filters and shielding on critical signals.
The XCVU13P FPGA's high-speed transceivers have limitations on data rate, cable length, and signal quality. Follow the guidelines in the XCVU13P FPGA Transceiver User Guide (UG579) and use the Transceiver Wizard tool to configure and optimize transceiver settings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCVU13P-L2FHGC2104E Overview

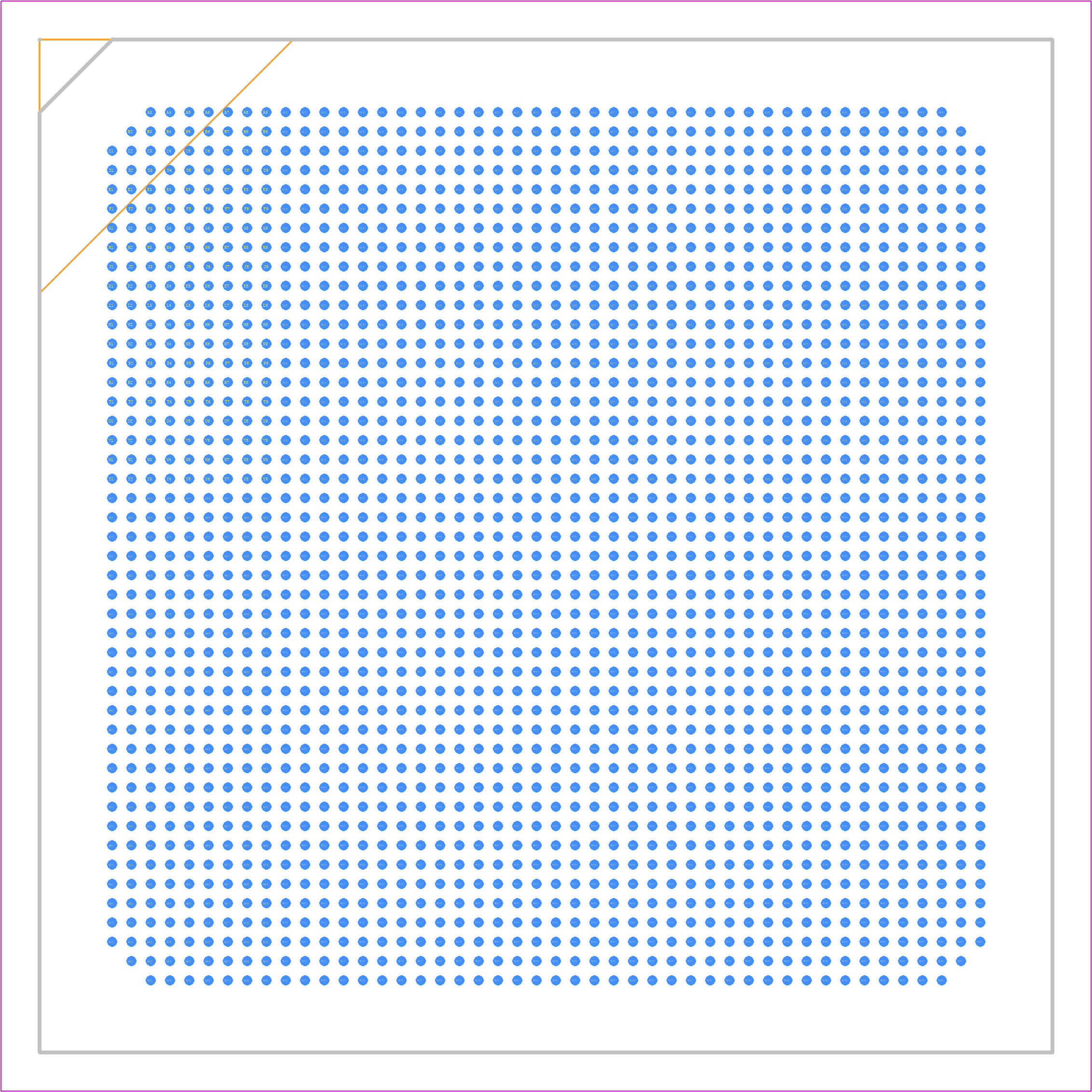

Use the download button to access the XCVU13P-L2FHGC2104E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCVU1,
or try a keyword search, such as Field Programmable Gate Arrays
