XCVU13P-L2FSGA2577E - AMD

Description: series Field Programmable Gate Array (FPGA) IC 448 99090432 3780000 2577-BBGA, FCBGA

Download XCVU13P-L2FSGA2577E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

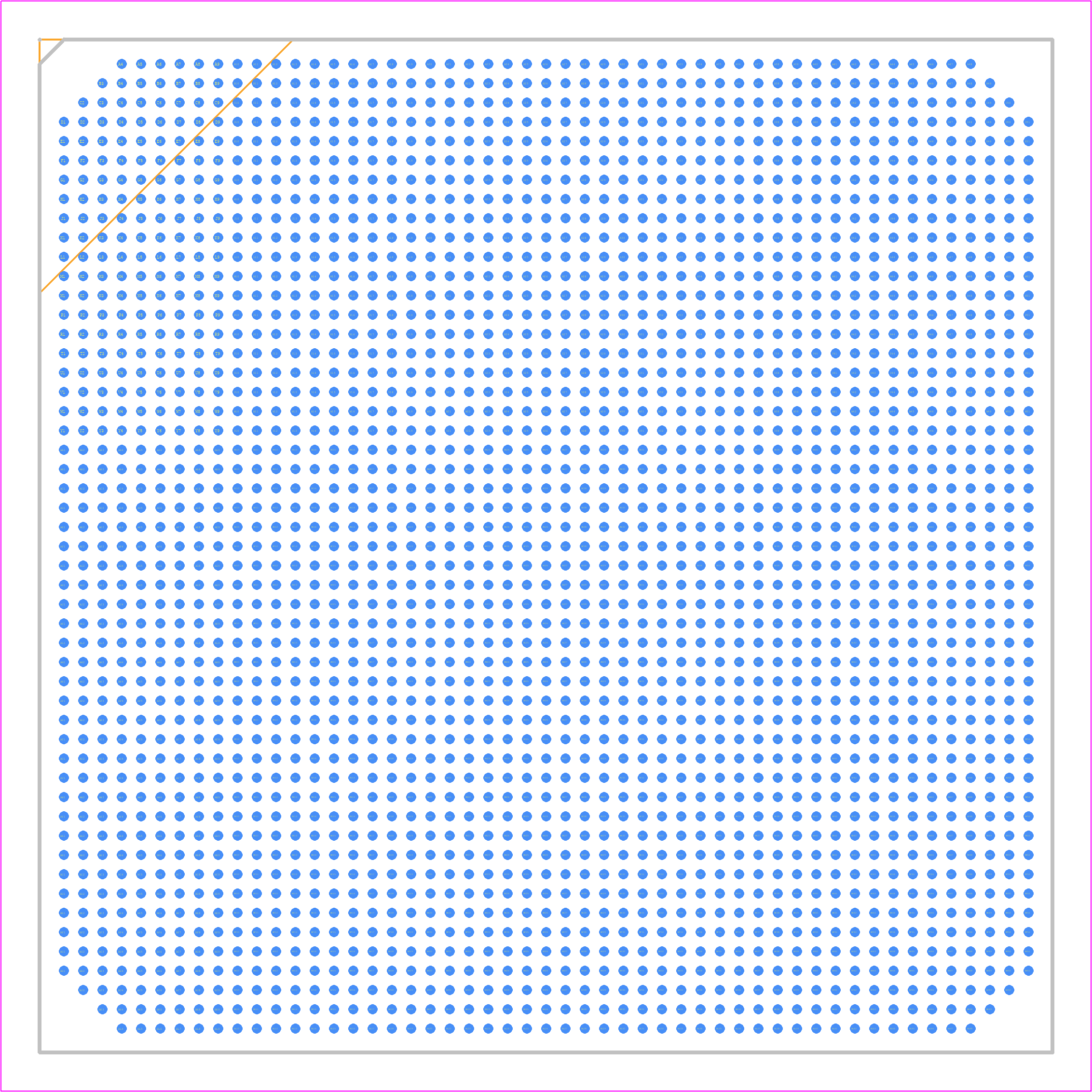

XCVU13P-L2FSGA2577E - AMD PCB footprint - BGA - BGA - FSGA2577
click to zoom
3D Models
XCVU13P-L2FSGA2577E - AMD  - 3D model - BGA - FSGA2577
click to zoom

XCVU13P-L2FSGA2577E Details

  • Manufacturer Part Number:

    XCVU13P-L2FSGA2577E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-2577

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 0.85V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B2577

  • Length:

    52.5 mm

  • Number of CLBs:

    216000

  • Number of Inputs:

    448

  • Number of Logic Cells:

    3780000

  • Number of Outputs:

    448

  • Number of Terminals:

    2577

  • Operating Temperature-Max:

    110 °C

  • Organization:

    216000 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA2577,51X51,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    4.51 mm

  • Supply Voltage-Max:

    0.742 V

  • Supply Voltage-Min:

    0.698 V

  • Supply Voltage-Nom:

    0.72 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    52.5 mm

XCVU13P-L2FSGA2577E Frequently Asked Questions (FAQs)

  • AMD provides a PCB Design Guide (UG583) that outlines the recommended layout, stackup, and routing guidelines for optimal signal integrity and thermal performance.
  • AMD provides a Power Estimation Tool (XPE) that helps estimate power consumption. Additionally, the Xilinx Power Management Guide (UG786) offers guidelines for optimizing power consumption and thermal management.
  • AMD provides a Clocking and Synchronization Guide (UG471) that outlines recommended strategies for clocking and synchronization in Xilinx FPGAs.
  • AMD provides a Security Guide (UG470) that outlines the implementation and verification of security features, including secure boot and encryption, in Xilinx FPGAs.
  • AMD provides a High-Speed Interface Guide (UG472) that outlines best practices for implementing high-speed interfaces, including PCIe and Ethernet, in Xilinx FPGAs.
