XDRA821UXXGALM - Texas Instruments

Description: Texas Instruments Dual Arm Cortex-A72, quad Cortex-R5F, 4-port Ethernet switch, and a PCIe controller 433-FCBGA -40 to 125

Download XDRA821UXXGALM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XDRA821UXXGALM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

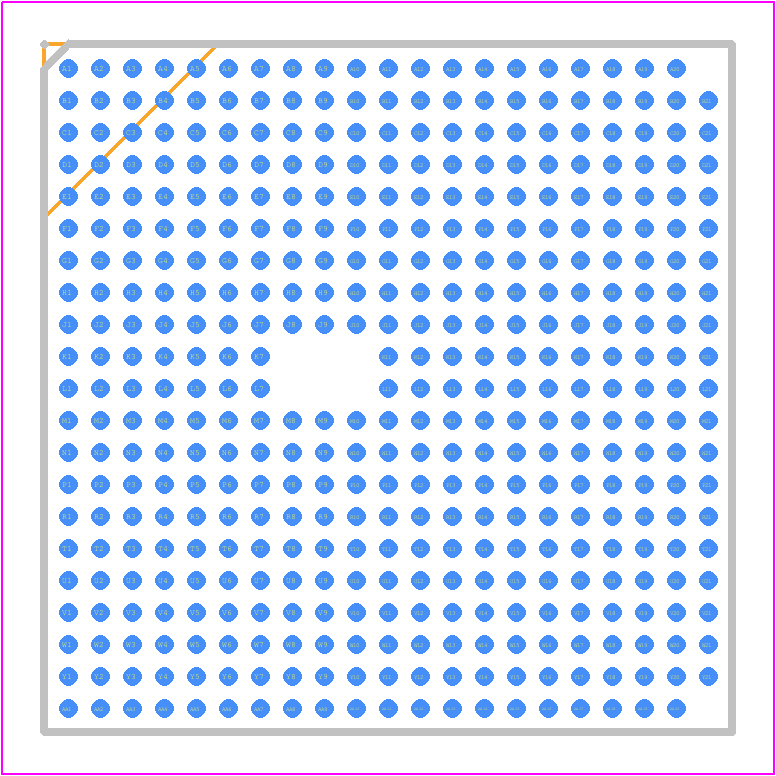

XDRA821UXXGALM - Texas Instruments PCB footprint - BGA - BGA - ALM0433A
click to zoom
3D Models
XDRA821UXXGALM - Texas Instruments - 3D model - BGA - ALM0433A
click to zoom

XDRA821UXXGALM Details

  • Manufacturer Part Number:

    XDRA821UXXGALM

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FCBGA-433

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2020-11-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B433

  • Length:

    17.2 mm

  • Number of Terminals:

    433

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA433,21X21,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Seated Height-Max:

    2.57 mm

  • Speed:

    2000 MHz

  • Supply Voltage-Max:

    0.84 V

  • Supply Voltage-Min:

    0.76 V

  • Supply Voltage-Nom:

    0.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17.2 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

XDRA821UXXGALM Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The XDRA821UXXGALM has a programmable output voltage range. You can configure it using the VOUT_MODE pin and the I2C interface. Refer to the datasheet and the programming guide (SLUA624) for detailed instructions.
  • The maximum input voltage rating for the XDRA821UXXGALM is 5.5V. Exceeding this voltage may damage the device. Ensure that the input voltage is within the recommended range to ensure reliable operation.
  • The XDRA821UXXGALM has built-in OCP and SCP features. You can configure the OCP threshold using the I2C interface. For SCP, the device has an internal current limit that will shut down the device in case of a short circuit. Refer to the datasheet for more information.
  • The thermal derating curve for the XDRA821UXXGALM is provided in the datasheet. It shows the maximum output current vs. ambient temperature. You can use this curve to determine the maximum output current at a given temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XDRA821UXXGALM Overview

Use the download button to access the XDRA821UXXGALM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XDRA8, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
