Texas Instruments provides a recommended PCB layout in the XIO2200AZHH datasheet (Section 10.1) and in the XIO2200A Evaluation Module User's Guide (SLUUAC6). It's essential to follow these guidelines to minimize noise, ensure proper signal integrity, and optimize performance.
The XIO2200AZHH can be configured for I2C or SPI mode through the MODE pin (Pin 15). For I2C mode, connect the MODE pin to VCC, and for SPI mode, connect it to GND. Additionally, the device's configuration registers can be programmed to select the desired interface mode.
The XIO2200AZHH supports clock frequencies up to 50 MHz in I2C mode and up to 25 MHz in SPI mode. However, the actual clock frequency may be limited by the system's noise tolerance, signal integrity, and other factors.
The XIO2200AZHH has an internal POR and BOR circuitry that resets the device during power-up or brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended operating range. Additionally, consider adding external reset circuitry or using a supervisory circuit to monitor the power supply and generate a reset signal if necessary.
The XIO2200AZHH is specified to operate over a temperature range of -40°C to 85°C (industrial grade) or -40°C to 125°C (extended grade). Ensure that the device is operated within the recommended temperature range to maintain its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XIO2200AZHH Overview

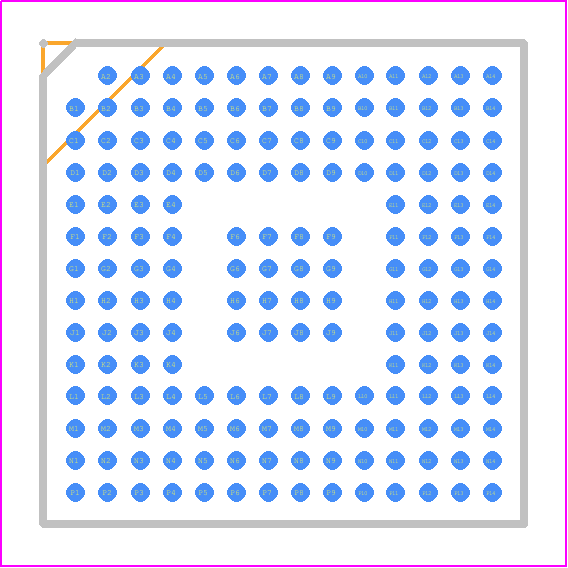

Use the download button to access the XIO2200AZHH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XIO22,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
