Texas Instruments provides a recommended PCB layout in the XISOW1412DFMR datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure proper thermal design, including a heat sink or thermal interface material, and consider derating the device's power dissipation at higher temperatures.
The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 25V. A ceramic or film capacitor with an X7R or X5R dielectric is recommended for optimal performance and stability.
To minimize EMI, follow proper PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, consider adding EMI filters, such as ferrite beads or common-mode chokes, to the input and output lines.
The recommended output capacitor value is 10uF to 47uF, with a low ESR and a voltage rating of at least 10V. A ceramic or film capacitor with an X7R or X5R dielectric is recommended for optimal performance and stability. The output capacitor should be placed close to the output pin to minimize parasitic inductance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XISOW1412DFMR Overview

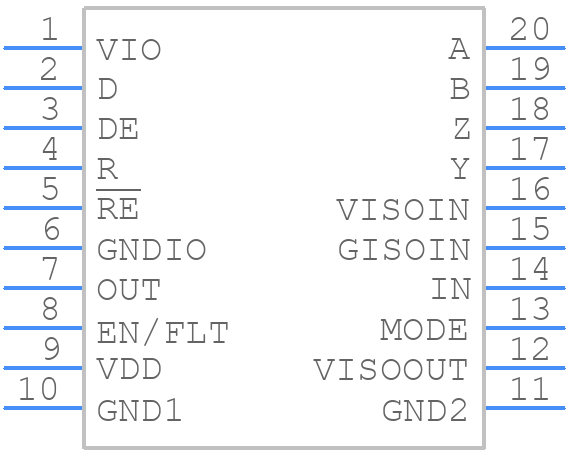

Use the download button to access the XISOW1412DFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XISOW,
or try a keyword search, such as Line Driver or Receivers
