XM3B-0922-501 - OMRON Electronics

Description: D-Sub Connector, XM3B Series, Socket + R/A DIP Term., 9 Contacts, 5A, 300VAC

Download XM3B-0922-501 Model

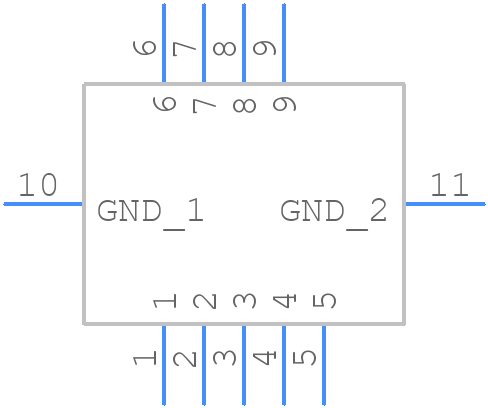

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

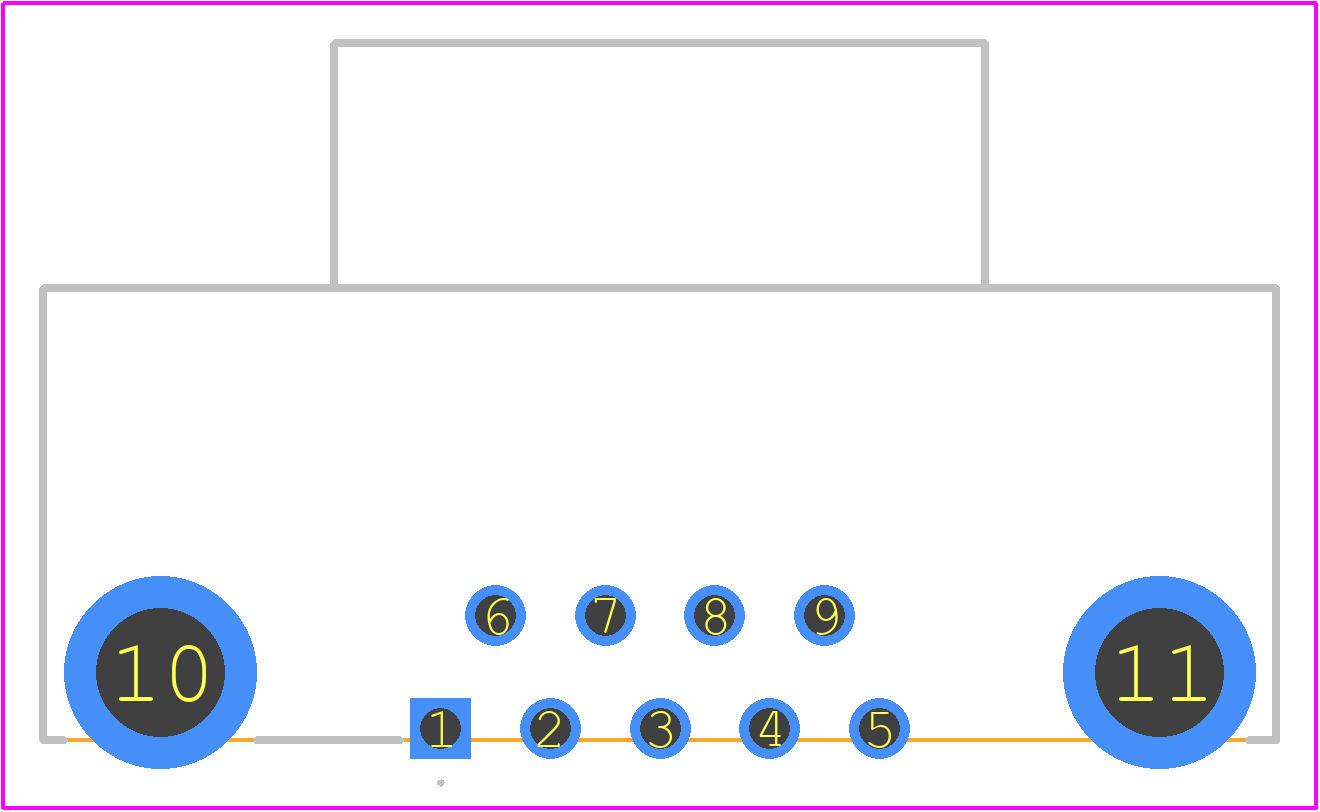

XM3B-0922-501 - OMRON Electronics PCB footprint - Other - Other - XM3B-0922-501-2
click to zoom

XM3B-0922-501 Details

  • Manufacturer Part Number:

    XM3B-0922-501

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    9

  • Board Mounting Option:

    HOLE 0.126

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.445 inch

  • Body Length:

    1.213 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (16)

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    200 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    3.33 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.108 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    HOLE 0.122

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.84 mm

  • Plating Thickness:

    16u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.29 N
