XM3B-0922-502 - OMRON Electronics

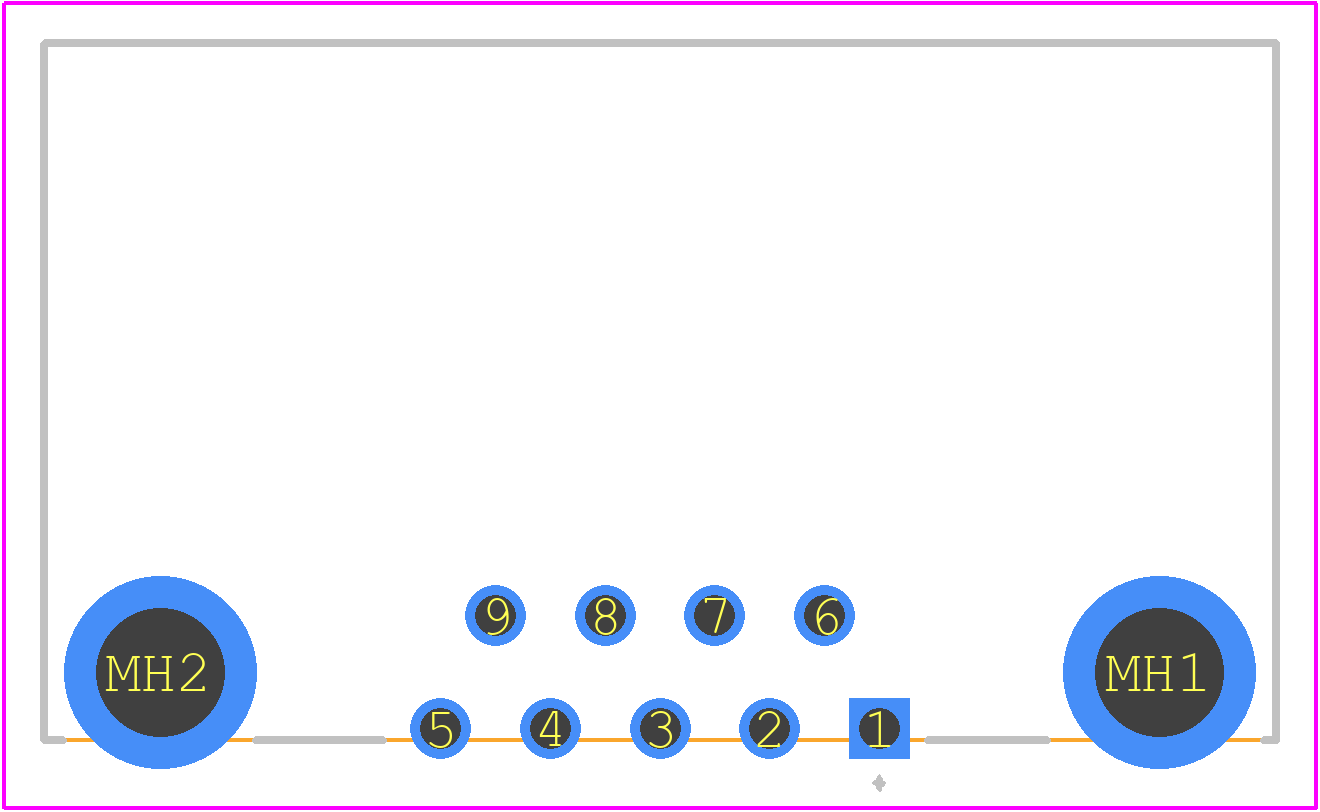

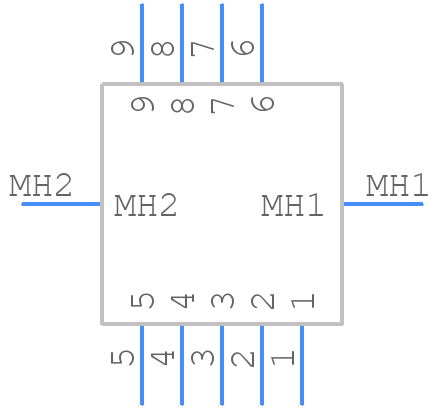

XM3B-0922-502 Details

• Manufacturer Part Number:

  XM3B-0922-502

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  111 Weeks

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  9

• Board Mounting Option:

  HOLE 0.126

• Body Breadth:

  0.492 inch

• Body Depth:

  0.445 inch

• Body Length:

  1.213 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD (16)

• Contact Finish Termination:

  TIN

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  15 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  200 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  3.33 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.108 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE 0.122

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Plating Thickness:

  16u inch

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  1/E

• Terminal Pitch:

  2.74 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.29 N
