XM3B-0942-502L - OMRON Electronics

Description: Conn D-Subminiature SKT 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port

Download XM3B-0942-502L Model

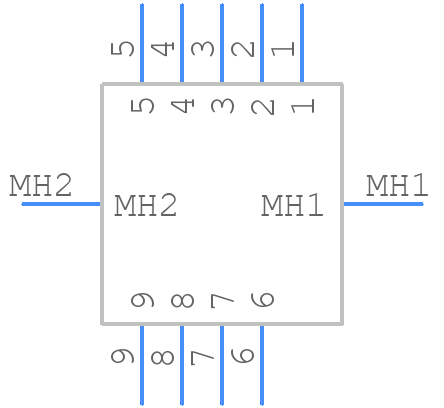

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

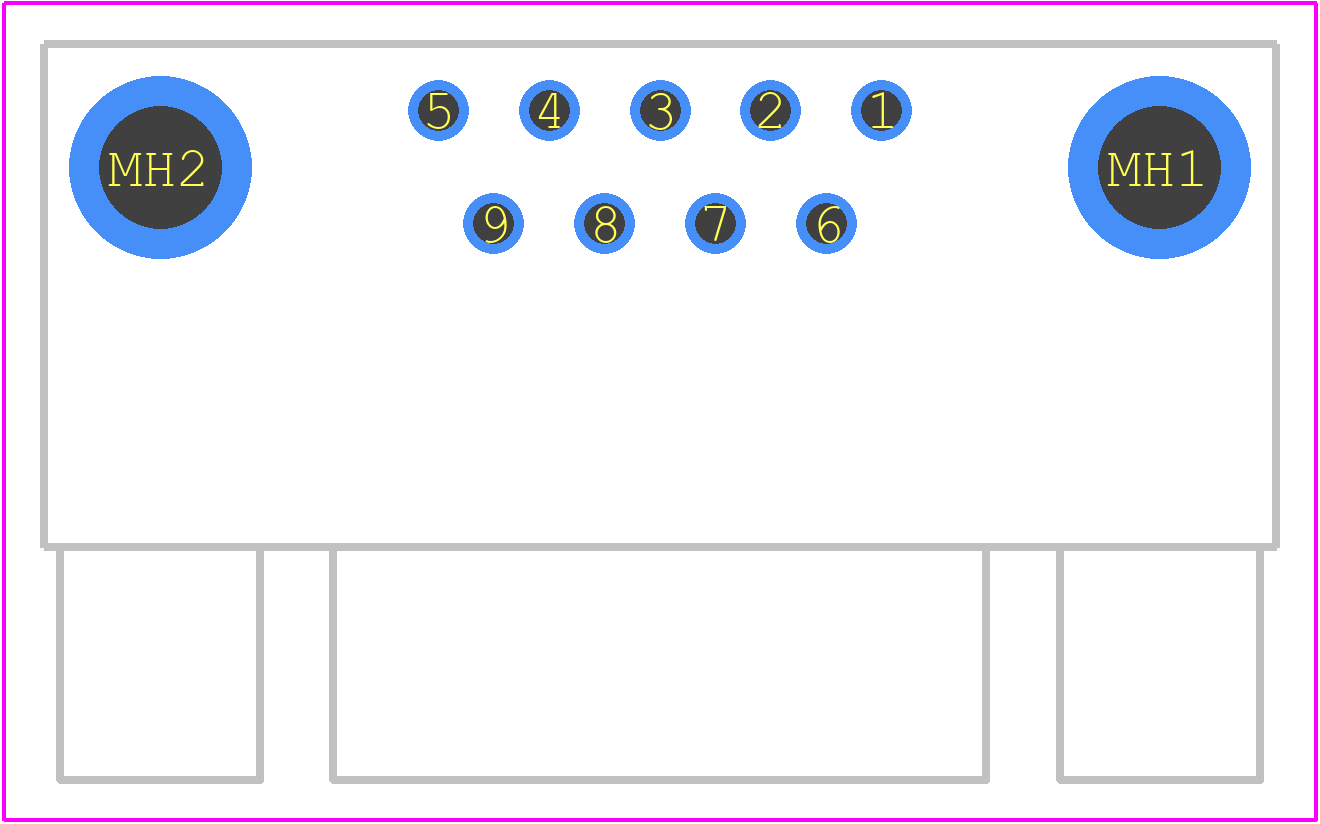

XM3B-0942-502L - OMRON Electronics PCB footprint - Other - Other - XM3B-0942-502L-2
click to zoom

XM3B-0942-502L Details

  • Manufacturer Part Number:

    XM3B-0942-502L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD FLASH

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4
