Omron recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal plane on the PCB.
Omron recommends using a soldering iron with a temperature range of 250°C to 260°C and a soldering time of 3 seconds or less. The device should be handled by the package, not the pins, to avoid damage. A no-clean flux is recommended, and the PCB should be cleaned after soldering to prevent corrosion.
Omron recommends handling the device in an ESD-protected environment, using wrist straps or mats, and storing the device in its original packaging or an anti-static bag. The device should not be exposed to temperatures above 30°C or humidity above 60% during storage.
Yes, the XM3B-2522-112 is designed to withstand vibrations up to 10 G (10-2000 Hz) and shocks up to 100 G (11 ms, half-sine wave). However, Omron recommends consulting their application notes and performing thorough testing to ensure the device meets the specific requirements of the application.
Omron recommends using their troubleshooting guide, which includes a fault tree analysis and a list of common failure modes. Additionally, engineers can use oscilloscopes and logic analyzers to monitor the device's signals and identify issues. Omron's technical support team can also provide assistance and guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XM3B-2522-112 Overview

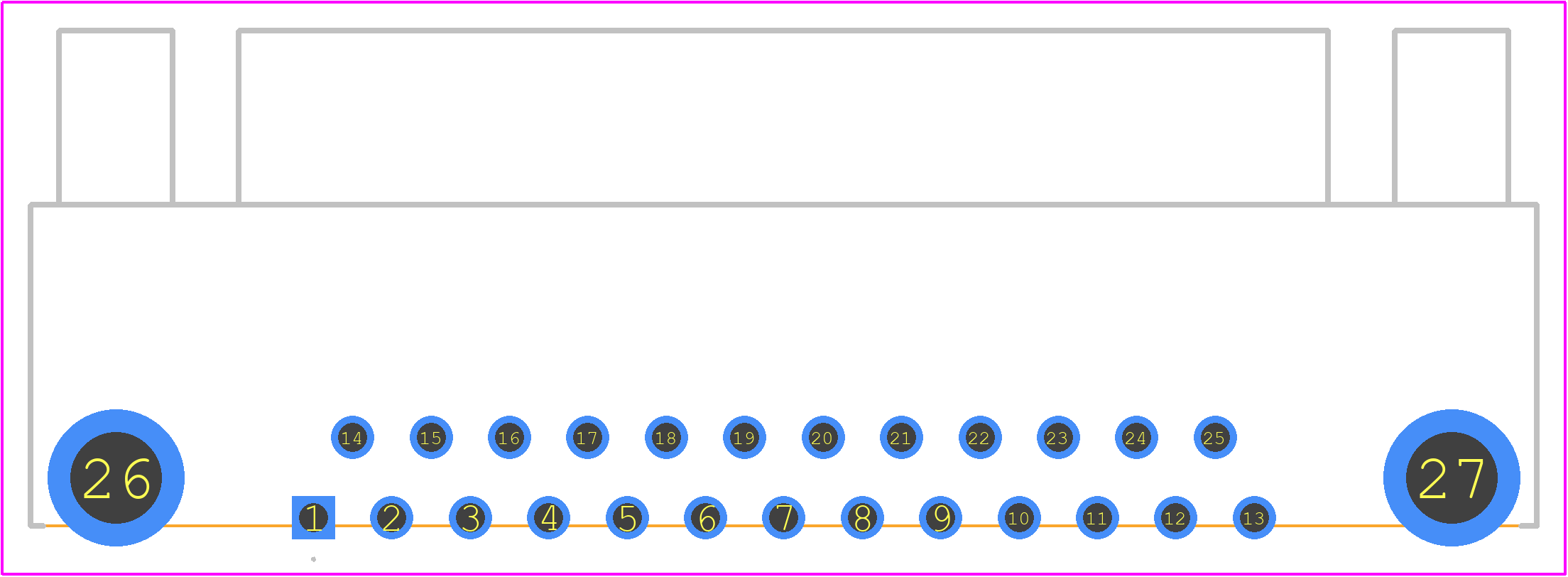

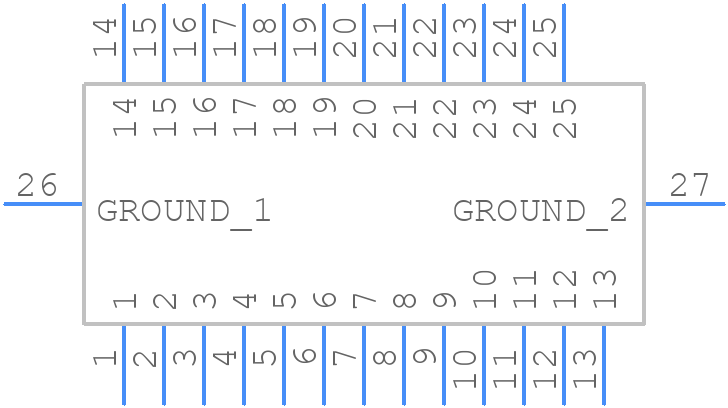

Use the download button to access the XM3B-2522-112 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XM3B-,
or try a keyword search, such as D Type Connectors
