XM3F-2520-112 - OMRON Electronics

Description: CONN D-SUB RCPT 25POS VERT SLDR

Download XM3F-2520-112 Model

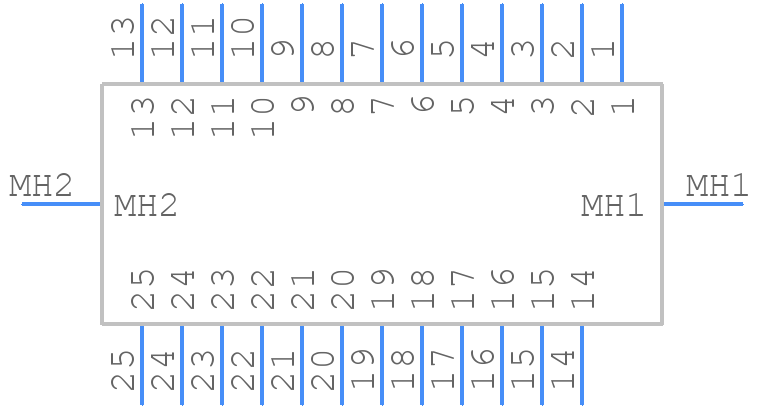

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

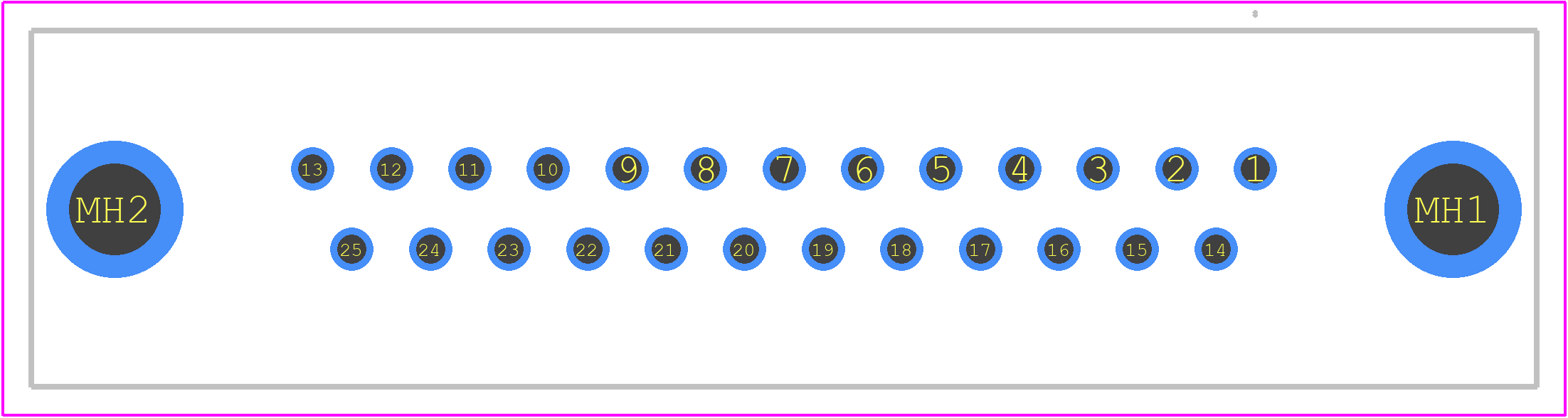

XM3F-2520-112 - OMRON Electronics PCB footprint - Other - Other - XM3F-2520-112-3
click to zoom
3D Models
XM3F-2520-112 - OMRON Electronics  - 3D model - Other - XM3F-2520-112-3
click to zoom

XM3F-2520-112 Details

  • Manufacturer Part Number:

    XM3F-2520-112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    9

  • Board Mounting Option:

    HOLE 0.126

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.264 inch

  • Body Length:

    2.083 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    200 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    3.33 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    M2.6X0.45

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.84 mm

  • Plating Thickness:

    16u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Length:

    0.126 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

  • Wire Size-Max:

    22 AWG

  • Wire Size-Min:

    28 AWG

  • Withdrawl Force-Min:

    0.29 N

XM3F-2520-112 Frequently Asked Questions (FAQs)

  • Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
  • Omron recommends handling the XM3F-2520-112 by the edges, avoiding touching the pins or electrical components. Store the devices in a dry, clean environment, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions during assembly.
  • While the datasheet provides the recommended operating conditions, it's essential to note that the maximum allowable voltage and current ratings are typically 10-20% higher than the recommended values. However, it's crucial to consult Omron's application notes and design guides for specific guidance on voltage and current derating.
  • Omron provides troubleshooting guides and application notes that outline common issues and their solutions. For faulty or stuck switches, check for proper soldering, ensure the device is properly seated, and verify that the operating conditions are within the recommended specifications.
  • Yes, when working with the XM3F-2520-112, ensure you follow proper safety precautions, such as wearing anti-static wrist straps, using ESD-safe tools, and avoiding exposure to high voltages or currents. Consult Omron's safety guidelines and industry standards for more information.
