Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and electrical performance.
To handle high current and power dissipation, ensure proper heat sinking, use a sufficient copper area on the PCB, and consider using thermal vias. Additionally, follow Omron's recommended operating conditions and derating guidelines.
While the datasheet provides some information on surge tolerance, it's essential to consult Omron's application notes and technical support for specific guidance on voltage and current surge tolerance, as it may vary depending on the application and environment.
The XM3F-3720-112 has a rated operating temperature range of -40°C to 125°C. However, it's crucial to consider the device's power dissipation, thermal management, and potential derating when operating in high-temperature environments. Consult Omron's technical support for specific guidance.
To ensure reliability and long-term stability, follow Omron's recommended operating conditions, storage guidelines, and handling procedures. Additionally, implement proper PCB design, soldering, and assembly practices, and consider using Omron's recommended components and materials.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XM3F-3720-112 Overview

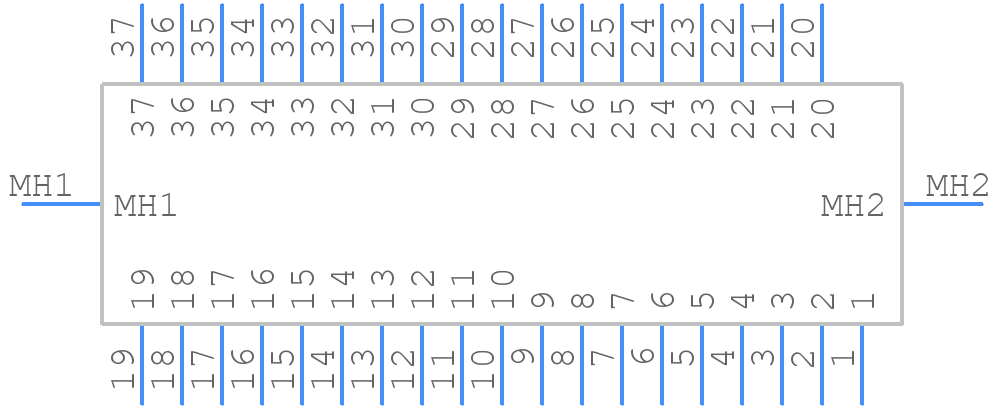

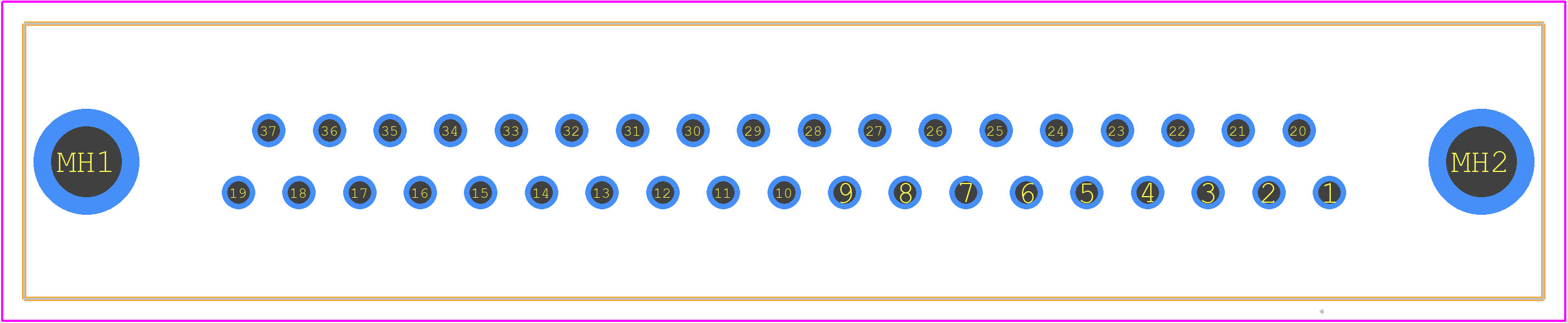

Use the download button to access the XM3F-3720-112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XM3F-,
or try a keyword search, such as D Type Connectors
