XM3K-2512-03N footprint, schematic symbol and 3D model by OMRON Electronics

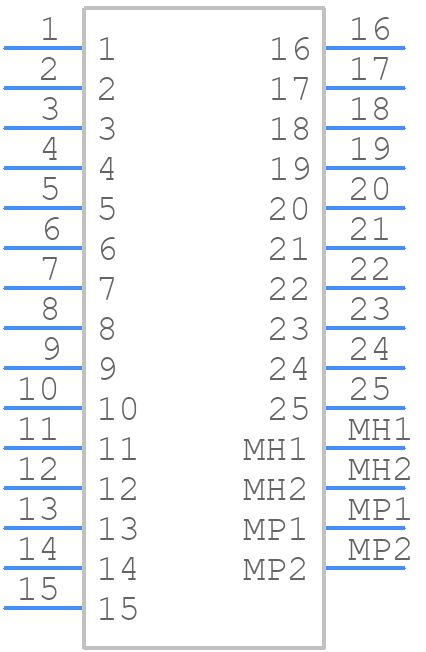

Symbol

click to zoom

PCB Footprints

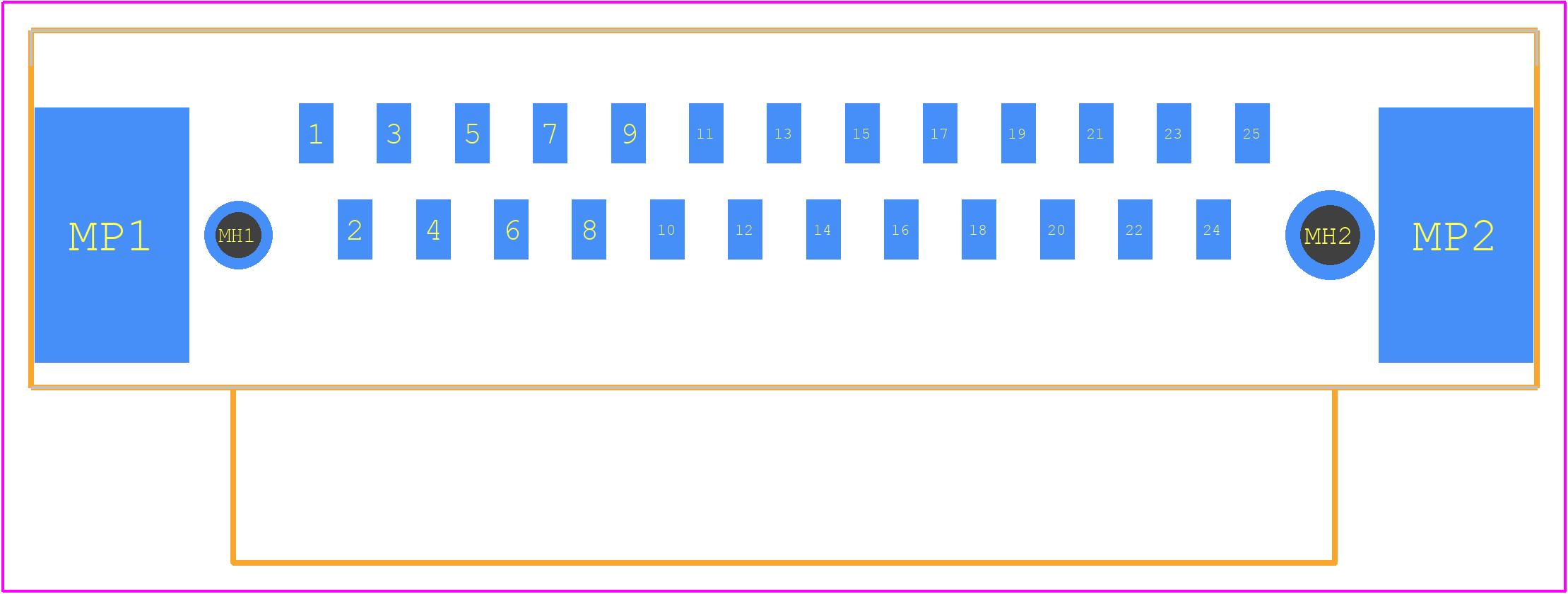

XM3K-2512-03N - OMRON Electronics PCB footprint - Other - Other - XM3K-2512-03N-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XM3K-2512-03N
Part Number XM3K-2512-03N
Manufacturer OMRON Electronics
Pin Count 29
Part Category Connector
Package Category Other
Footprint Name Other - XM3K-2512-03N-4
Released Date Nov 1, 2019
Last Modified Date Jul 11, 2025 10:25 AM UTC
Pinout / Pin List Click Here (Member Only)

XM3K-2512-03N Details

Manufacturer Part Number:
XM3K-2512-03N
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
15 Weeks, 3 Days
Manufacturer:
OMRON Electronic Components
Connector Type:
D SUBMINIATURE CONNECTOR

XM3K-2512-03N Frequently Asked Questions (FAQs)

The recommended storage temperature range for XM3K-2512-03N is -40°C to 125°C.
Yes, XM3K-2512-03N is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
Yes, XM3K-2512-03N is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
The typical operating current of XM3K-2512-03N is 10mA, with a maximum operating current of 20mA.
Yes, XM3K-2512-03N is designed to operate in humid environments, with a moisture sensitivity level (MSL) of 3.
