Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
Proper thermal management is crucial for the reliability and performance of XM3L-2512-03N. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias and copper pours.
While the datasheet specifies the recommended operating voltage, it's essential to note that the maximum allowable voltage is typically 1.5 to 2 times the recommended voltage. However, it's recommended to consult with Omron's application engineers or technical support for specific guidance.
Omron's XM3L-2512-03N is designed to meet certain vibration and shock standards, but it's essential to evaluate the specific environmental conditions of your application. Consult with Omron's application engineers or technical support to determine the suitability of XM3L-2512-03N for your specific use case.
To troubleshoot issues with XM3L-2512-03N, follow a systematic approach: 1) Consult the datasheet and application notes, 2) Verify the PCB design and layout, 3) Check the power supply and voltage levels, 4) Use oscilloscopes or logic analyzers to debug the signal, and 5) Contact Omron's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XM3L-2512-03N Overview

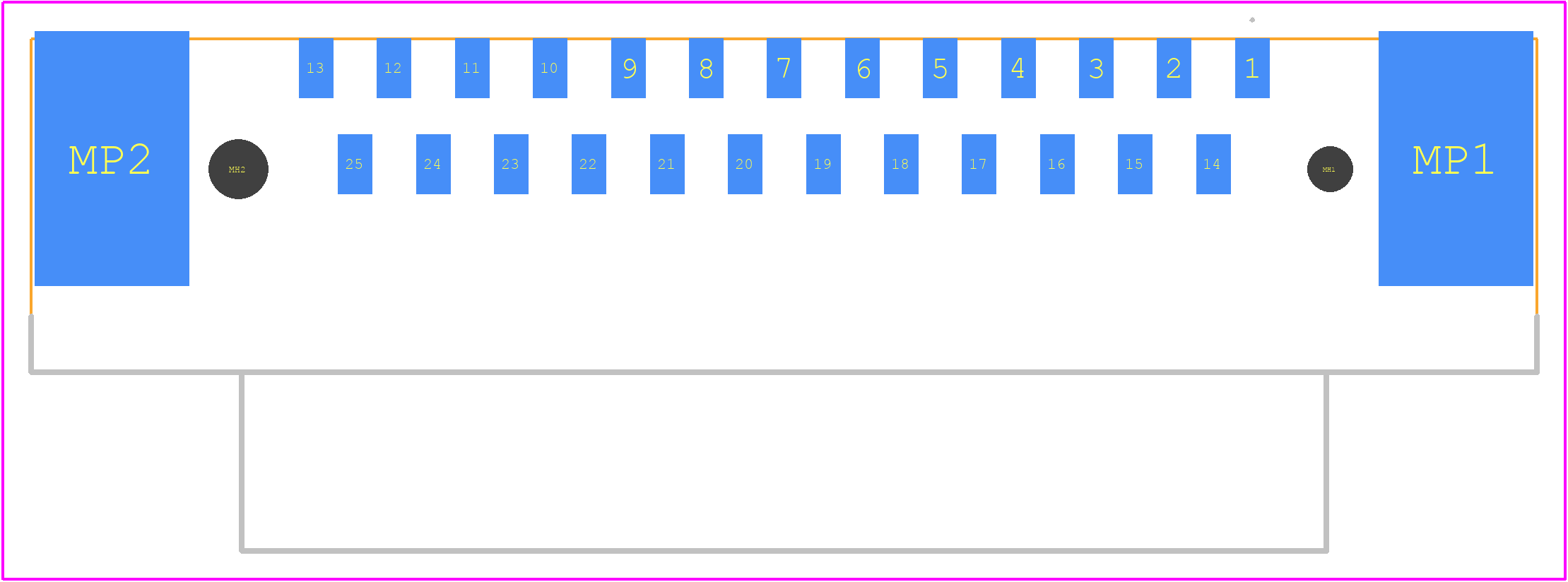

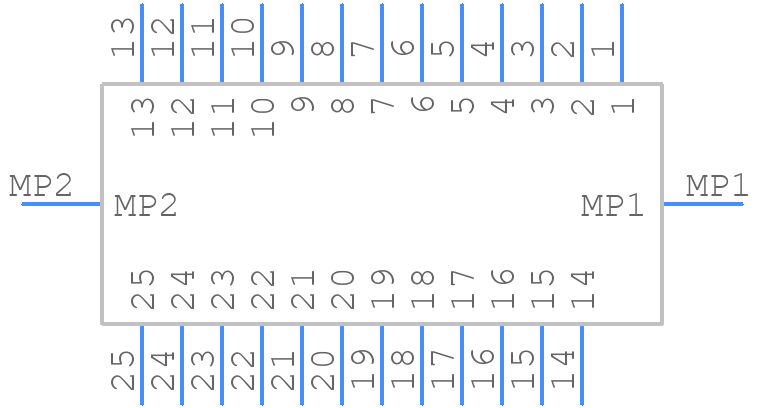

Use the download button to access the XM3L-2512-03N schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XM3L-,
or try a keyword search, such as D Type Connectors
