MaxLinear provides a reference design guide and layout recommendations in their application notes. It's essential to follow these guidelines to ensure proper thermal management and signal integrity. Additionally, a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended.
To optimize power consumption, consider using the device's power-down modes, adjusting the clock frequency, and optimizing the transmit and receive modes. MaxLinear provides power consumption estimates in the datasheet, but actual power consumption may vary depending on the specific application and usage.
The XR20M1172IG28TR-F has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. For latch-up prevention, ensure that the device is powered up and down correctly, and avoid voltage spikes or transients on the power supply lines.
MaxLinear provides a range of debugging tools and software, including a development kit and evaluation board. Use these resources to debug and troubleshoot issues. Additionally, consult the datasheet and application notes for troubleshooting guidelines and FAQs.
The XR20M1172IG28TR-F is rated for operation in the industrial temperature range (-40°C to 85°C). While it can operate in a wide range of environmental conditions, it's essential to follow proper storage and handling procedures to prevent damage. Consult the datasheet for specific ratings and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR20M1172IG28TR-F Overview

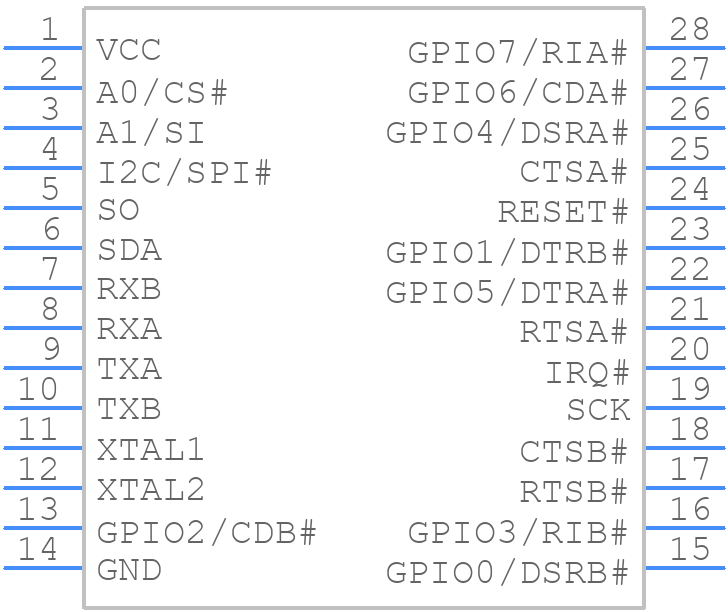

Use the download button to access the XR20M1172IG28TR-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR20M,
or try a keyword search, such as Serial IO/Communication Controllers
