For optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet, ensuring a solid ground plane, and using thermal vias to dissipate heat. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, consider using thermal pads or a heat sink to dissipate heat.
To optimize power consumption, ensure that the device is operated within the recommended voltage range (1.7V to 3.6V). Use the power-down mode (PD pin) to reduce power consumption when the device is not in use. Additionally, consider using a low-power oscillator and optimizing the clock frequency to minimize power consumption.
To prevent ESD damage, handle the device by the body or the pins, avoiding direct contact with the die. Use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Store the device in an anti-static bag or tube, and follow proper soldering and handling procedures to prevent damage.
To troubleshoot issues, start by verifying the device's power supply, clock frequency, and signal integrity. Check the device's configuration and register settings. Use a logic analyzer or oscilloscope to monitor the device's signals and identify potential issues. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
The XR21B1422IL40-F is rated for operation in the industrial temperature range (-40°C to 85°C). For harsh environments, consider using a conformal coating to protect the device from moisture and contaminants. Ensure the device is properly soldered and the PCB is designed to withstand the environmental conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR21B1422IL40-F Overview

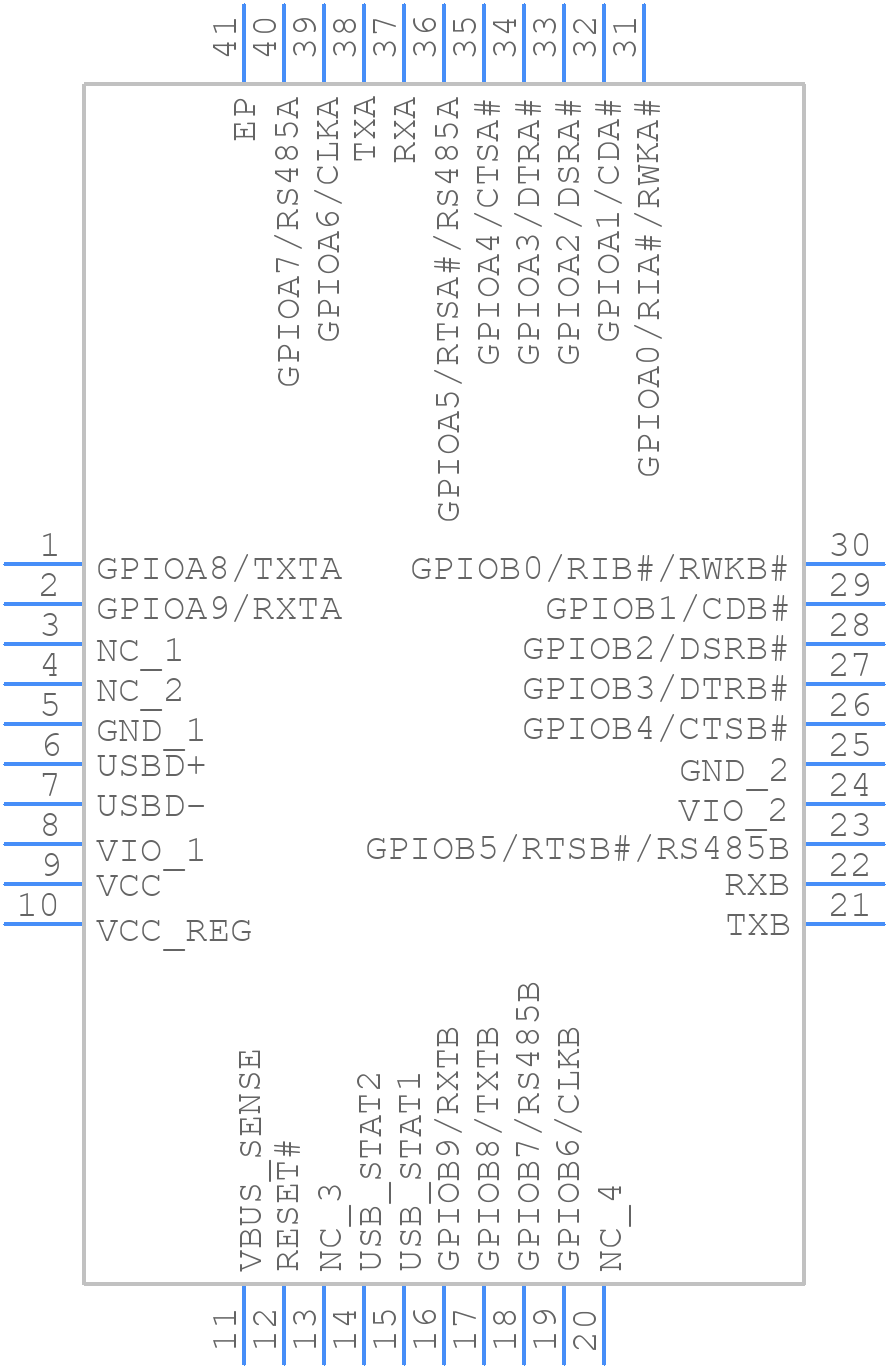

Use the download button to access the XR21B1422IL40-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR21B,
or try a keyword search, such as Serial IO/Communication Controllers
