For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note AN-215. Ensure a solid ground plane, use thermal vias, and keep the device away from heat sources. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation, follow the recommended operating conditions, and consider the device's thermal characteristics. Implement thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature (Tj) below 150°C.
The XR21V1410IL16-F requires a single 1.8V power supply. Ensure a clean and stable power supply, and follow the recommended power sequencing: VDDIO, then VDDCORE. Use a low-dropout regulator (LDO) or a switching regulator with a low noise output to minimize power supply noise.
To optimize performance, consider the specific requirements of your application. Adjust the device's configuration registers, such as the clock frequency, data rate, and transmission mode, to meet your application's needs. Consult the datasheet and application notes for guidance on optimizing performance.
The XR21V1410IL16-F has built-in ESD protection, but handling precautions are still necessary. Handle the device by the body or the pins, avoid touching the die, and use an anti-static wrist strap or mat. Store the device in an anti-static bag or tube to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR21V1410IL16-F Overview

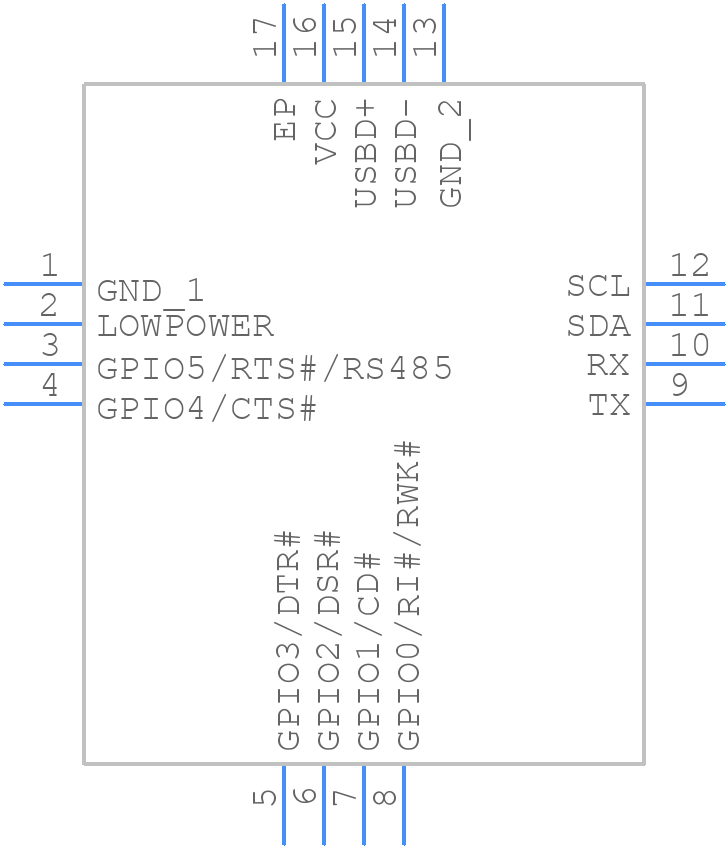

Use the download button to access the XR21V1410IL16-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR21V,
or try a keyword search, such as Serial IO/Communication Controllers
