A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the recommended specifications. Also, use a pull-up resistor on the SCL line and a pull-down resistor on the SDA line.
The XR68C681CJTR-F can operate from -40°C to 85°C, but the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat dissipation to maintain optimal performance.
Use an external power-on reset circuit or a dedicated reset IC to ensure a clean power-on reset. For brown-out detection, use a voltage supervisor IC or a dedicated brown-out detection circuit to detect voltage drops and reset the device accordingly.
Use 0.1uF to 1uF ceramic capacitors for decoupling, placed as close as possible to the device's power pins. Additional bulk capacitors (e.g., 10uF) can be used for further power supply filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR68C681CJTR-F Overview

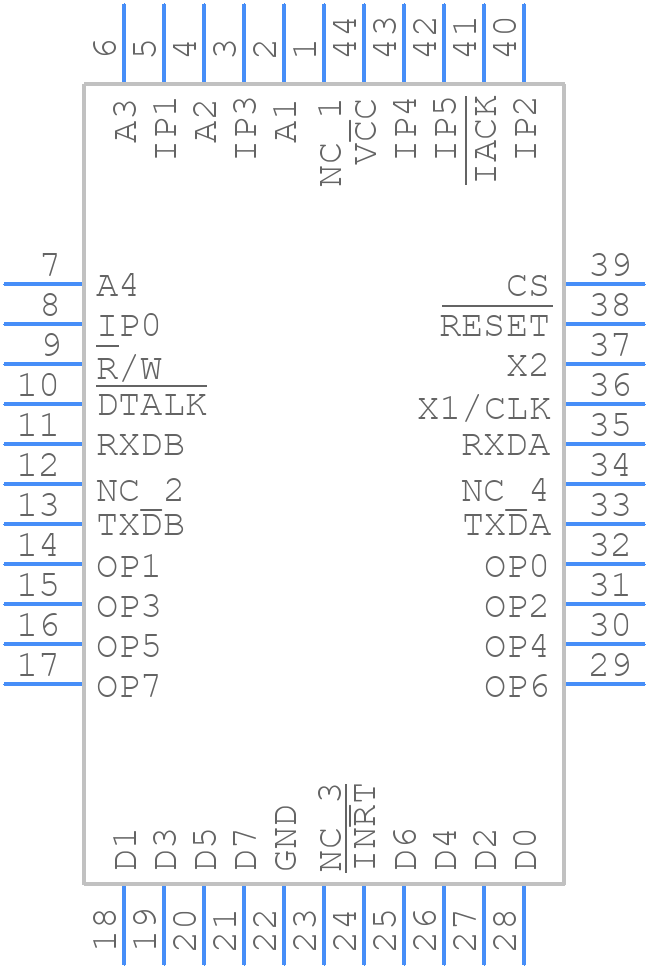

Use the download button to access the XR68C681CJTR-F schematic symbol and PCB footprint.
