Texas Instruments recommends a 4-layer PCB with a solid ground plane on the bottom layer, and thermal vias connecting the exposed pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within its specified temperature range.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the specified range of 1.8V to 5V.
The XTHS3491IDDAR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
The recommended clock frequency for the XTHS3491IDDAR is up to 100 MHz, but it can operate at frequencies up to 150 MHz with reduced performance. It's essential to consider the clock frequency when designing the system to ensure reliable operation and minimize jitter.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XTHS3491IDDAR Overview

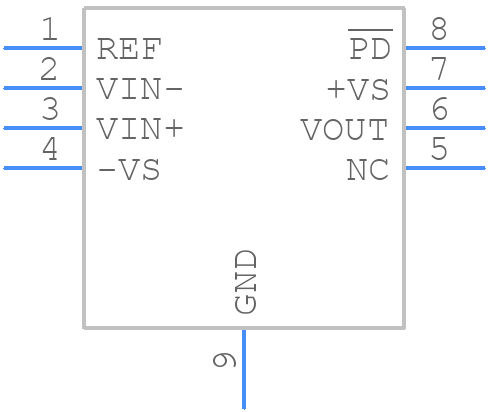

Use the download button to access the XTHS3491IDDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTHS3,
or try a keyword search, such as Operational Amplifiers
