XTR101AG - Texas Instruments

Description: TWO-WIRE TRANSMITTER

Download XTR101AG Model

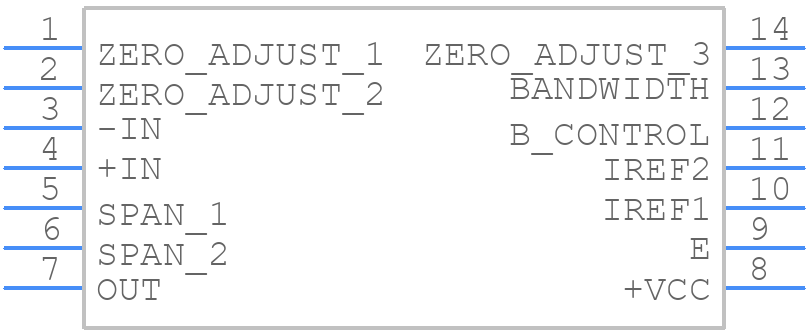

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

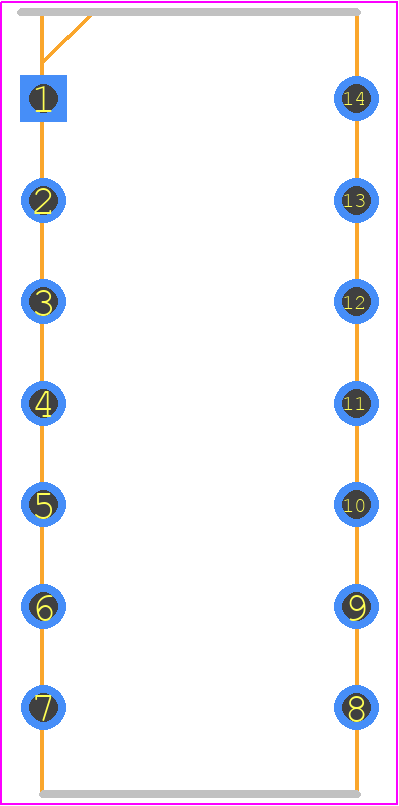

XTR101AG - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - JD (R-CDIP-T14)
click to zoom
3D Models
XTR101AG - Texas Instruments  - 3D model - Ceramic Dual-In-Line Packages - JD (R-CDIP-T14)
click to zoom

XTR101AG Details

  • Manufacturer Part Number:

    XTR101AG

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1989-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.15 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Input Offset Current-Max (IIO):

    0.03 µA

  • Input Offset Voltage-Max:

    30 µV

  • JESD-30 Code:

    R-CDIP-T14

  • Length:

    18.545 mm

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

XTR101AG Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the input signal. This ensures proper operation and prevents damage to the device.
  • To minimize noise and interference, keep the input and output traces separate, use a solid ground plane, and place decoupling capacitors close to the device. Also, avoid running digital lines near the analog input traces.
  • The maximum input voltage that the XTR101AG can handle is 15V, but it's recommended to keep the input voltage within the specified range of 0V to 10V to ensure accurate conversion.
  • Calibration involves adjusting the internal offset and gain of the device. This can be done using the CAL pin and an external calibration voltage. Refer to the datasheet for specific calibration procedures.
  • The typical settling time for the XTR101AG is around 10-15 microseconds, but this can vary depending on the input signal frequency and amplitude.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

XTR101AG Overview

Use the download button to access the XTR101AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10, or try a keyword search, such as Instrumentation Amplifiers
