XTR101AU/1K - Texas Instruments

Description: Sensor Interface Prec Lo-Drift 4-20mA 2-Wire Trnsmtr

Download XTR101AU/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

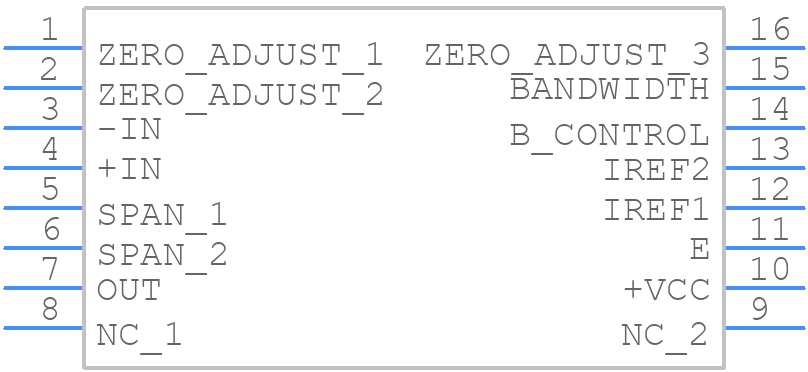

XTR101AU/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR101AU/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
XTR101AU/1K - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

XTR101AU/1K Details

  • Manufacturer Part Number:

    XTR101AU/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.15 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Input Offset Current-Max (IIO):

    0.03 µA

  • Input Offset Voltage-Max:

    30 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

XTR101AU/1K Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Use a high-quality input capacitor (e.g., 10uF ceramic) and a low-ESR output capacitor (e.g., 22uF ceramic). Ensure the input voltage is within the recommended range (7.5V to 36V). Use a voltage divider or a voltage regulator to regulate the input voltage if necessary.
  • The XTR101AU/1K can deliver up to 1A of output current. However, the maximum output current depends on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's thermal derating curves for more information.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended range. You can also use a voltage clamp or a TVS diode to protect the device from overvoltage conditions.
  • A 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitor should be placed as close to the device as possible and connected between the input pin and the ground pin.
