XTR105P - Texas Instruments

Description: Texas Instruments XTR105P 4 → 20 mA Current Loop Transmitter 14-Pin PDIP

Download XTR105P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

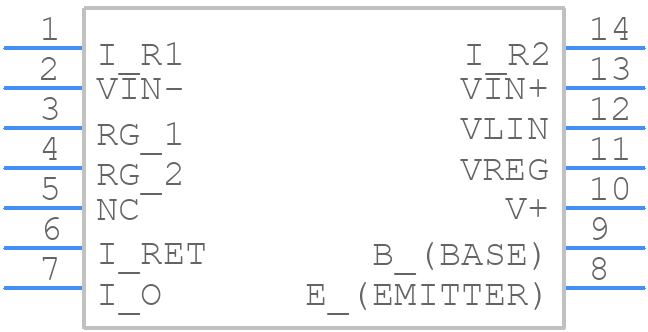

Symbol
XTR105P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR105P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14 pdip n
click to zoom
3D Models
XTR105P - Texas Instruments - 3D model - Dual-In-Line Packages - 14 pdip n
click to zoom

XTR105P Details

  • Manufacturer Part Number:

    XTR105P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.025 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.003 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

XTR105P Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the XTR105P close to the power source to minimize noise and EMI. A good layout practice is to keep the analog and digital grounds separate and connect them at a single point.
  • The XTR105P has an internal calibration circuit that is enabled by connecting the CAL pin to VCC. The device will then perform an internal calibration cycle. It is recommended to calibrate the device after power-up and after any changes to the input voltage or temperature.
  • The XTR105P can handle input voltages up to 40V, but it is recommended to limit the input voltage to 30V to ensure reliable operation and to prevent damage to the device.
  • It is recommended to use a voltage regulator or a voltage limiter to prevent overvoltage, and a current limiter or a fuse to prevent overcurrent. Additionally, a TVS diode can be used to protect the device from voltage spikes and transients.
  • The XTR105P is specified to operate from -40°C to 125°C, but it is recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XTR105P Overview

Use the download button to access the XTR105P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10, or try a keyword search, such as Instrumentation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
