XTR105U - Texas Instruments

Description: Texas Instruments XTR105U 4 → 20 mA Current Loop Transmitter 14-Pin SOIC

Download XTR105U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

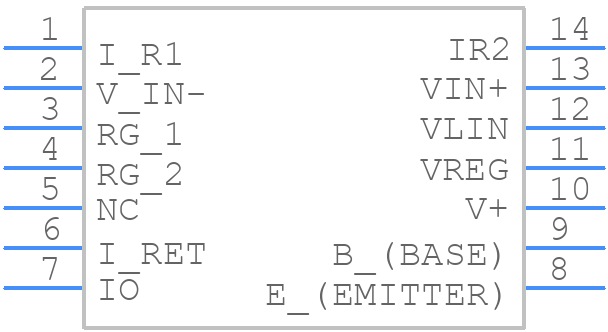

XTR105U - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR105U - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC d
click to zoom
3D Models
XTR105U - Texas Instruments - 3D model - Small Outline Packages - SOIC d
click to zoom

XTR105U Details

  • Manufacturer Part Number:

    XTR105U

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.025 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.003 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

XTR105U Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the XTR105U close to the power source to minimize noise and EMI. A good layout practice is to keep the analog and digital grounds separate and connect them at a single point.
  • The XTR105U has an internal calibration circuit that is enabled by connecting the CAL pin to VCC. The device will then perform an internal calibration cycle. It is recommended to perform calibration after power-up and after any changes to the input voltage or temperature.
  • The recommended input voltage range for the XTR105U is 4.5V to 5.5V. Operating the device outside of this range may affect its accuracy and reliability.
  • During power-up, the XTR105U's output voltage may overshoot or undershoot. To handle this, it is recommended to add a capacitor (e.g. 10uF) in parallel with the output to filter out any transients. During power-down, the output voltage may decay slowly, so it is recommended to add a pull-down resistor (e.g. 1kΩ) to discharge the output capacitor quickly.
  • The XTR105U has a thermal derating of 1.5°C/W above 25°C. This means that for every 1°C increase in temperature above 25°C, the device's power rating decreases by 1.5W.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XTR105U Overview

Use the download button to access the XTR105U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10, or try a keyword search, such as Instrumentation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
