A good PCB layout for the XTR105UA involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper thermal management, it's recommended to attach a heat sink to the XTR105UA, especially in high-power applications. The heat sink should be designed to dissipate heat efficiently, and thermal interface material should be used to fill any gaps between the device and the heat sink.
The recommended input capacitor for the XTR105UA is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The recommended output capacitor is a low-ESR ceramic capacitor with a value of 10uF to 47uF. The capacitor values may vary depending on the specific application and output voltage.
To troubleshoot issues with the XTR105UA, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly cooled and that the PCB layout is correct. Check for any signs of physical damage or contamination. If the issue persists, consult the datasheet and application notes for guidance.
Yes, the XTR105UA is designed to operate in high-reliability and high-temperature applications. It's qualified to the automotive AEC-Q100 standard and can operate in temperatures up to 150°C. However, it's essential to follow proper design and layout guidelines to ensure reliable operation in these applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XTR105UA Overview

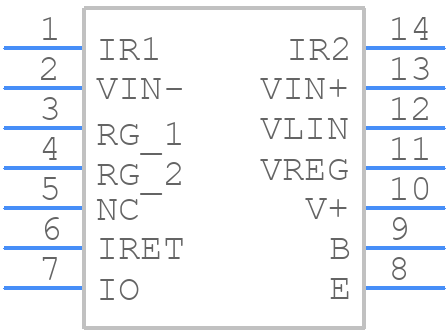

Use the download button to access the XTR105UA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
