XTR106P - Texas Instruments

Description: Texas Instruments XTR106P 4 → 20 mA Current Loop Transmitter 14-Pin PDIP

Download XTR106P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

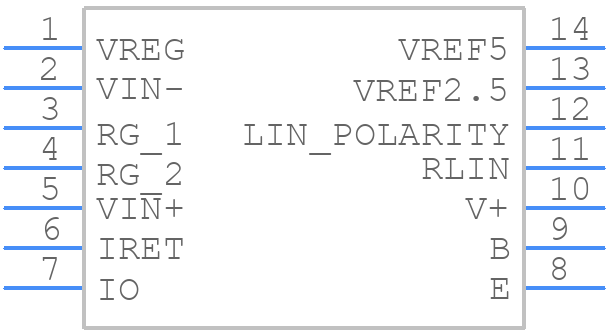

XTR106P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR106P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T14)
click to zoom
3D Models
XTR106P - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T14)
click to zoom

XTR106P Details

  • Manufacturer Part Number:

    XTR106P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.025 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.003 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

XTR106P Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. It's also recommended to use a common mode choke and a ferrite bead to filter out high-frequency noise.
  • The XTR106P requires a bias voltage of 5V to 15V, and the recommended bias current is 10mA to 20mA. It's also important to ensure the bias voltage is well-regulated and noise-free to prevent distortion and oscillation.
  • The XTR106P can handle input voltages up to 50V peak-to-peak, but it's recommended to limit the input voltage to 20V peak-to-peak to ensure optimal performance and prevent damage to the device.
  • Common issues with the XTR106P can be troubleshooted by checking the bias voltage and current, ensuring proper PCB layout and routing, and verifying that the input and output impedances are matched. It's also recommended to use a spectrum analyzer to identify any unwanted frequency components.
  • Yes, the XTR106P can be used in a push-pull configuration, but it requires careful attention to the biasing and impedance matching to ensure optimal performance and prevent oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XTR106P Overview

Use the download button to access the XTR106P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10, or try a keyword search, such as Instrumentation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
