Part Image

XTR106UA - Texas Instruments

Description: 4-20mA Current Transmitter with Bridge Excitation And Linearization

Download XTR106UA Model

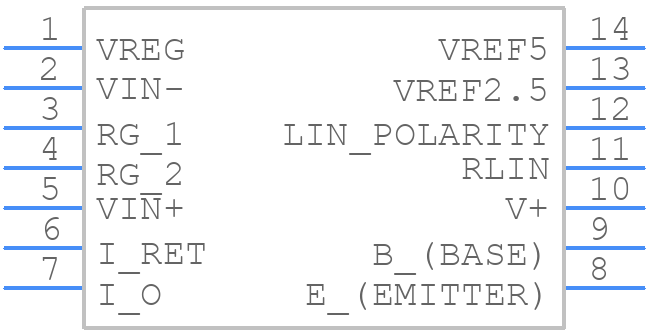

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XTR106UA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
XTR106UA - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

XTR106UA Details

  • Manufacturer Part Number:

    XTR106UA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Lifetime Buy

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0.98

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.05 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Input Offset Current-Max (IIO):

    0.01 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

XTR106UA Overview

Use the download button to access the XTR106UA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10, or try a keyword search, such as Instrumentation Amplifiers

Parts related to XTR106UA

Showing 0 results

XTR106UA Alternates

Showing results

Image Part Number Model
Part Image XTR106UA/2K5 Texas Instruments

4-20-mA current transmitter with bridge excitation (2.5-V or 5-V reference) and linearization 14-SOIC -40 to 85
