Texas Instruments provides a recommended PCB layout in the XTR106UAG4 datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive signals away from noise sources.
To ensure accurate temperature measurement, it's crucial to calibrate the XTR106UAG4 using the calibration coefficients provided in the datasheet. Additionally, ensure proper thermal coupling between the device and the target temperature source, and avoid self-heating effects by minimizing power consumption.
The maximum cable length for the XTR106UAG4 depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping cable lengths below 10 meters to minimize signal attenuation and noise pickup.
Yes, the XTR106UAG4 is designed to operate in high-vibration environments. However, it's essential to ensure proper mechanical mounting and strain relief to prevent damage to the device or its connections.
To minimize EMI, use proper shielding, grounding, and filtering techniques. Ensure that the XTR106UAG4 is placed in a shielded enclosure, and use twisted-pair or shielded cables for connections. Additionally, follow good PCB design practices to minimize radiation and susceptibility to EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XTR106UAG4 Overview

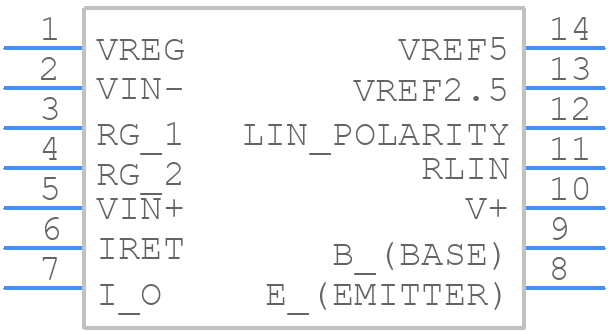

Use the download button to access the XTR106UAG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
