XTR111AIDRCT - Texas Instruments

Description: TEXAS INSTRUMENTS - XTR111AIDRCT - Voltage to Current Converter / Transmitter, 7 V to 44 V, SON-10

Download XTR111AIDRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

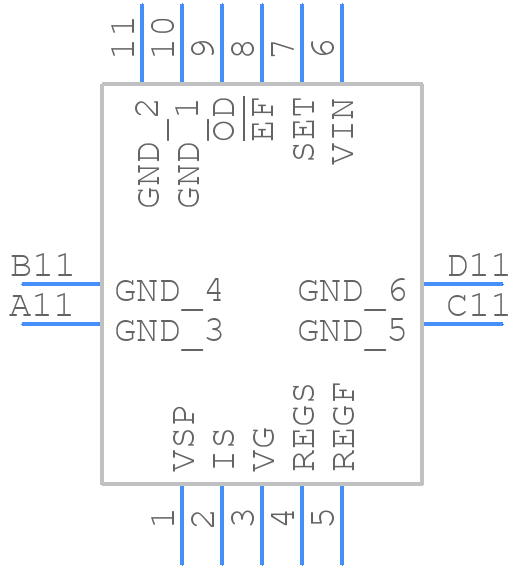

XTR111AIDRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR111AIDRCT - Texas Instruments PCB footprint - Other - Other - XTR111AIDRCT-3
click to zoom
3D Models
XTR111AIDRCT - Texas Instruments - 3D model - Other - XTR111AIDRCT-3
click to zoom

XTR111AIDRCT Details

  • Manufacturer Part Number:

    XTR111AIDRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

XTR111AIDRCT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the XTR111AIDRCT close to the power source to minimize noise and EMI. A minimum of 10nF decoupling capacitor is recommended between VCC and GND.
  • To minimize power consumption, use the lowest possible supply voltage, reduce the switching frequency, and use the shutdown mode when not in use. Additionally, consider using a low-dropout regulator (LDO) to reduce power consumption.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding which may cause damage to the device. It's recommended to use voltage limiting resistors or clamping diodes to protect the inputs.
  • To ensure EMC, use a shielded enclosure, keep the XTR111AIDRCT away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow good PCB layout practices and use a ground plane to reduce radiation.
  • The XTR111AIDRCT has a thermal pad on the bottom, which should be connected to a thermal plane or a heat sink to dissipate heat. Ensure good airflow and avoid blocking the airflow around the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

XTR111AIDRCT Overview

Use the download button to access the XTR111AIDRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR11, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
