ZED-F9P-15B - u-blox

Description: GNSS / GPS Modules u-blox F9 dual band L1/L5 GNSS module high precision Professional Grade LGA, 16x12 mm, 250 pcs/reel

Download ZED-F9P-15B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZED-F9P-15B - u-blox - PCB symbol
click to zoom
PCB Footprints

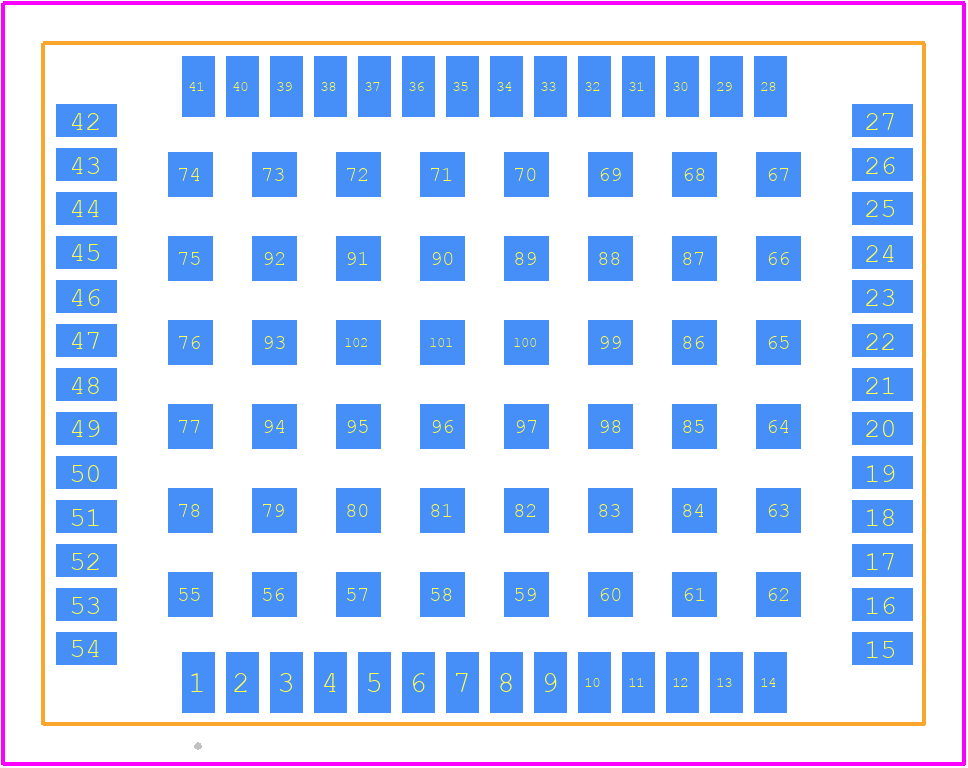

ZED-F9P-15B - u-blox PCB footprint - Other - Other - ZED-F9P-15B-1
click to zoom
3D Models
ZED-F9P-15B - u-blox - 3D model - Other - ZED-F9P-15B-1
click to zoom

ZED-F9P-15B Details

  • Manufacturer Part Number:

    ZED-F9P-15B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • Moisture Sensitivity Level:

    4

  • Telecom IC Type:

    TELECOM CIRCUIT

ZED-F9P-15B Frequently Asked Questions (FAQs)

  • The maximum update rate of the ZED-F9P-15B is 25 Hz, but it can be configured to operate at lower update rates to conserve power.
  • The ZED-F9P-15B uses advanced multipath mitigation techniques, including a combination of signal processing and antenna design, to minimize the effects of multipath interference.
  • Yes, the ZED-F9P-15B is designed to operate in high-vibration environments and can withstand vibrations up to 10 g RMS.
  • The typical current consumption of the ZED-F9P-15B is around 70 mA at 3.3 V, but this can vary depending on the operating mode and configuration.
  • Yes, the ZED-F9P-15B supports RTK positioning, which enables centimeter-level accuracy in real-time.
