ZIOL2201BI1W - Renesas Electronics

Description: The ZIOL2201 is a line driver/level shifter IC that provides an HV I/O channel with a wide range of configurable system features. It addresses the physical layer of sensor/actuator systems in factory automation applications, and it is specifically designed to support the communication standard IO-Link. The output driver is a push-pull stage that reaches an RDSon of less than 6.6Ω at all operational temperatures. The configuration is stored in an on-chip EEPROM and automatically loaded into the ZIOL2201's co

Download ZIOL2201BI1W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

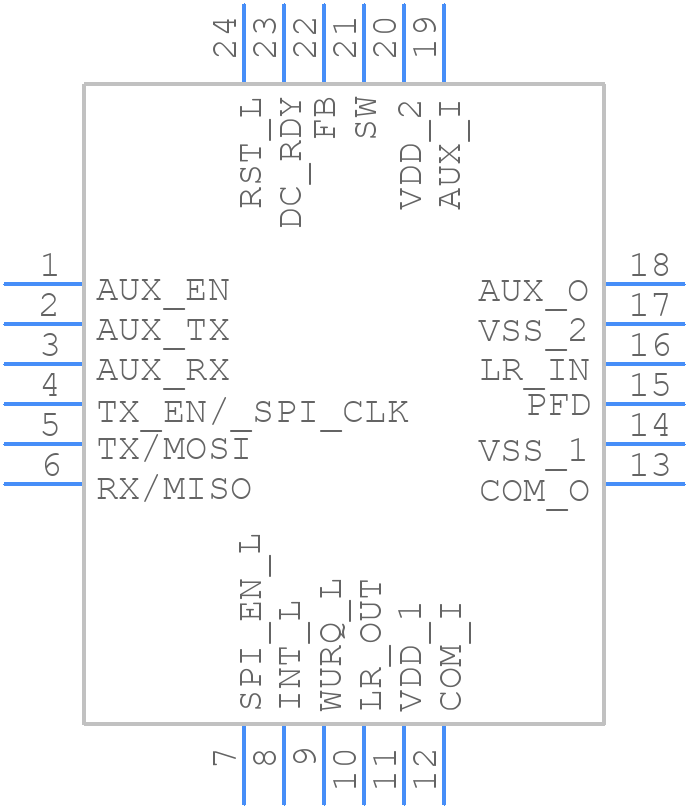

ZIOL2201BI1W - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZIOL2201BI1W - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-PQFN-+-
click to zoom
3D Models
ZIOL2201BI1W - Renesas Electronics - 3D model - Quad Flat No-Lead - 24-PQFN-+-
click to zoom

ZIOL2201BI1W Details

  • Manufacturer Part Number:

    ZIOL2201BI1W

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE DRIVER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ZIOL2201BI1W Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4191EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The ZIOL2201BI1W has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The recommended values for the resistor and capacitor can be found in the datasheet. Additionally, an external overcurrent protection circuit can be implemented using a dedicated IC or a discrete component solution.
  • The ZIOL2201BI1W has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
  • The ZIOL2201BI1W is rated for a maximum input voltage of 18V, but it can be used in high-voltage applications with proper voltage regulation and protection. Renesas recommends using a voltage regulator or a DC-DC converter to step down the input voltage to ensure safe operation within the recommended voltage range.
  • Renesas provides a troubleshooting guide in their application note (R01AN4191EU0100) that covers common issues and their solutions. Additionally, engineers can use oscilloscopes, logic analyzers, and other debugging tools to identify and resolve issues related to the ZIOL2201BI1W.
