Description:The ZIOL2401 is a line driver/level shifter IC that provides two independent HV I/O channels with a wide range of configurable system features. It addresses the physical layer of sensor/actuator systems in factory automation applications and is specifically designed to support the communication standard IO-Link. The output drivers are push-pull stages, which in tandem mode reach an RDSon of less than 3.3Ω at all operational temperatures. The configuration is stored in an on-chip EEPROM and automatically loa
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for signal integrity, power supply, and thermal management.
A reliable POR circuit can be implemented using an external voltage detector, such as the Renesas RP108 series, which can detect the power supply voltage and generate a reset signal. The ZIOL2401BI1W also has an internal POR circuit, but an external circuit can provide additional flexibility and reliability.
The ZIOL2401BI1W has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, the device should be placed in a well-ventilated area, and thermal interface materials (TIMs) can be used to improve heat transfer between the device and the heat sink.
To optimize the clock tree, it's essential to follow Renesas' guidelines for clock tree design, including using a dedicated clock net, minimizing clock signal routing, and using clock buffers to reduce jitter and skew. Additionally, the ZIOL2401BI1W has built-in clock conditioning circuits that can help reduce jitter and skew.
The ZIOL2401BI1W has built-in ESD protection diodes, but additional external ESD protection devices, such as TVS diodes or ESD arrays, can be used to provide additional protection. It's also essential to follow proper PCB design and layout guidelines to minimize ESD susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZIOL2401BI1W Overview

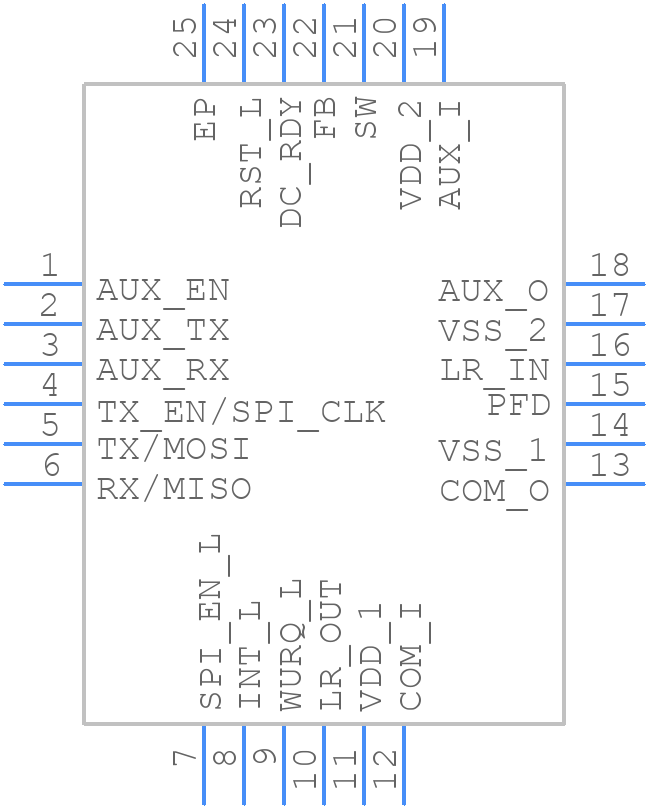

Use the download button to access the ZIOL2401BI1W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZIOL2,
or try a keyword search, such as Line Driver or Receivers
