A good PCB layout for the ZR431F01TA involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
To ensure stability, ensure the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is properly decoupled from the input and output capacitors. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
The ZR431F01TA is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. It's essential to consider thermal management and heat dissipation in the system design.
Yes, the ZR431F01TA is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, and ensure the device is properly derated for the specific application.
Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. Ensure to consider the maximum junction temperature and thermal resistance when calculating the power dissipation to avoid overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZR431F01TA Overview

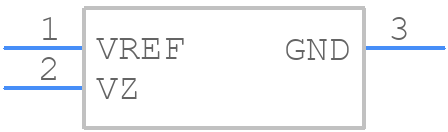

Use the download button to access the ZR431F01TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZR431,
or try a keyword search, such as Voltage References
