ZSC31010CEG1-R - Renesas Electronics

Description: The ZSC31010 is a CMOS integrated circuit, which enables easy and precise calibration of resistive bridge sensors via EEPROM. When mated to a resistive bridge sensor, it will digitally calibrate offset and gain with the option to calibrate offset and gain coefficients and linearity over temperature. A second-order compensation can be enabled for temperature coefficients of gain or offset or bridge linearity. ZSC31010 communicates via IDT's ZACwire™ serial interface to the host computer and is easily mass ca

Download ZSC31010CEG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

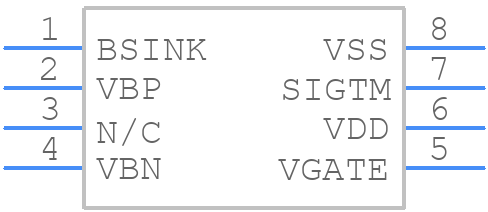

ZSC31010CEG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31010CEG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8 (SOIC 8)
click to zoom
3D Models
ZSC31010CEG1-R - Renesas Electronics - 3D model - Small Outline Packages - DCG8 (SOIC 8)
click to zoom

ZSC31010CEG1-R Details

  • Manufacturer Part Number:

    ZSC31010CEG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Additional Feature:

    ALSO HAS SUPPLY FROM 5.5V TO 30V WITH EXT JFET REG

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

ZSC31010CEG1-R Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZSC31010CEG1-R involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to place the device close to the sensor and to use a common mode filter to reduce noise.
  • Calibration of the ZSC31010CEG1-R involves adjusting the offset and gain of the device to match the specific sensor being used. This can be done using the device's built-in calibration registers or through external calibration using a microcontroller or other external device.
  • The ZSC31010CEG1-R has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the ZSC31010CEG1-R can be used with multiple sensors, but it requires external multiplexing circuitry to switch between the different sensors. The device has a single analog-to-digital converter (ADC) that can be connected to multiple sensors using an external multiplexer.
  • The power consumption of the ZSC31010CEG1-R depends on the operating mode and the frequency of the device. In normal operation, the device consumes around 10mA at 3.3V, but this can be reduced to around 1mA in low-power mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSC31010CEG1-R Overview

Use the download button to access the ZSC31010CEG1-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSC31, or try a keyword search, such as Other Signal Circuits
