ZSC31014EAG1-R - Renesas Electronics

Description: The ZSC31014 RBiciLite™ is a feature rich CMOS integrated circuit for high accuracy amplification and analog-to-digital conversion of a differential input signal. Perfect for low-cost applications, the ZSC31014 can perform offset, span, and 1st and 2nd order temperature compensation of the measured signal. Developed for correction of resistive bridge sensors, the ZSC31014 can also provide a corrected temperature output through an internal or external sensor measurement. Digital compensation of signal offset

Download ZSC31014EAG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

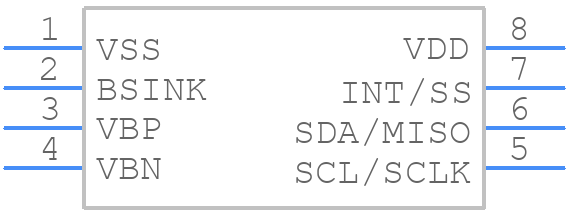

ZSC31014EAG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31014EAG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG-8
click to zoom
3D Models
ZSC31014EAG1-R - Renesas Electronics - 3D model - Small Outline Packages - DCG-8
click to zoom

ZSC31014EAG1-R Details

  • Manufacturer Part Number:

    ZSC31014EAG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    26 Weeks, 1 Day

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    DIGITAL OUTPUT SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

ZSC31014EAG1-R Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) between VCC and GND, and place it close to the device.
  • Calibration involves adjusting the internal offset and gain of the device. Use the built-in calibration registers to adjust the offset and gain. You can also use an external calibration signal to adjust the gain. Refer to the datasheet for specific calibration procedures.
  • The maximum operating temperature range for the ZSC31014EAG1-R is -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. Ensure proper thermal management and heat dissipation to maintain optimal performance.
  • Yes, the ZSC31014EAG1-R can operate with a 3.3V power supply. However, ensure that the power supply is stable and regulated to prevent noise and voltage drops that may affect the device's performance.
  • The ZSC31014EAG1-R communicates through an I2C interface. Connect the SCL and SDA pins to the microcontroller's I2C pins. Use a pull-up resistor (e.g., 4.7kΩ) on the SCL and SDA lines. Ensure the microcontroller's I2C clock frequency is within the recommended range (100kHz to 400kHz).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSC31014EAG1-R Overview

Use the download button to access the ZSC31014EAG1-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSC31, or try a keyword search, such as Analog to Digital Converters
