ZSC31014EIG1-R - Renesas Electronics

Description: The ZSC31014 RBiciLite™ is a feature rich CMOS integrated circuit for high accuracy amplification and analog-to-digital conversion of a differential input signal. Perfect for low-cost applications, the ZSC31014 can perform offset, span, and 1st and 2nd order temperature compensation of the measured signal. Developed for correction of resistive bridge sensors, the ZSC31014 can also provide a corrected temperature output through an internal or external sensor measurement. Digital compensation of signal offset

Download ZSC31014EIG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

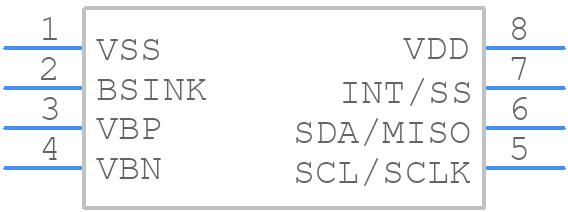

Symbol
ZSC31014EIG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31014EIG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8D3
click to zoom
3D Models
ZSC31014EIG1-R - Renesas Electronics - 3D model - Small Outline Packages - DCG8D3
click to zoom

ZSC31014EIG1-R Details

  • Manufacturer Part Number:

    ZSC31014EIG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    DIGITAL OUTPUT SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.81 mm

ZSC31014EIG1-R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1469) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • The ZSC31014EIG1-R requires calibration for each specific application. Renesas provides a calibration guide in their application note (AN1469) which includes steps for calibrating the device using the ZSC31014 Evaluation Kit and the ZSC31014 Calibration Software.
  • The ZSC31014EIG1-R has an operating temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and accuracy.
  • The ZSC31014EIG1-R can be interfaced with a microcontroller using the I2C or SPI interface. Renesas provides example code and interface guidelines in their application note (AN1469) and datasheet.
  • The power consumption of the ZSC31014EIG1-R varies depending on the operating mode and frequency. According to the datasheet, the typical power consumption is 1.5mA in normal mode and 0.5mA in low-power mode.
