ZSC31050FAG1-T - Renesas Electronics

Description: The ZSC31050 is a CMOS integrated circuit for amplification and sensor-specific correction of bridge sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity by a 16-bit RISC microcontroller running a correction algorithm. The ZSC31050 accommodates virtually any resistive bridge sensor (e.g., piezo-resistive and steel-membrane-based pressure sensors). In addition, the device can interface to a separate temperature sensor. The bi-directional

Download ZSC31050FAG1-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

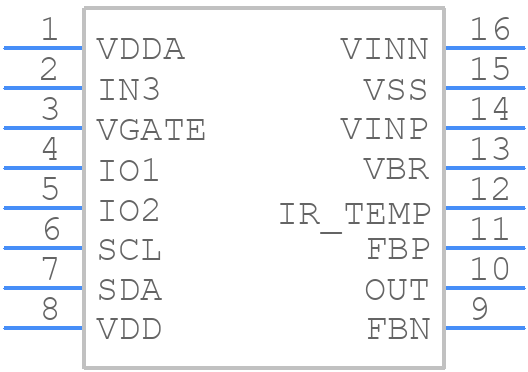

ZSC31050FAG1-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31050FAG1-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PYG16
click to zoom
3D Models
ZSC31050FAG1-T - Renesas Electronics - 3D model - Small Outline Packages - PYG16
click to zoom

ZSC31050FAG1-T Details

  • Manufacturer Part Number:

    ZSC31050FAG1-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PYG16

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    DIFFERENTIAL SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ZSC31050FAG1-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZSC31050FAG1-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to place the device close to the analog signal sources and to use a common mode filter to reduce noise.
  • Calibration of the ZSC31050FAG1-T involves adjusting the internal offset and gain registers to compensate for any variations in the sensor output. This can be done using the device's built-in calibration registers or through external calibration using a microcontroller or other external device.
  • The ZSC31050FAG1-T has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The ZSC31050FAG1-T can be interfaced with a microcontroller using the device's SPI or I2C interface. The device's digital output can be connected directly to the microcontroller's digital input pins, and the microcontroller can then read the sensor data and perform any necessary processing or analysis.
  • The ZSC31050FAG1-T has a typical current consumption of 1.5mA when operating at 3.3V, making it suitable for use in low-power applications.
