ZSC31050FIG1-R - Renesas Electronics

Description: The ZSC31050 is a CMOS integrated circuit for amplification and sensor-specific correction of bridge sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity by a 16-bit RISC microcontroller running a correction algorithm. The ZSC31050 accommodates virtually any resistive bridge sensor (e.g., piezo-resistive and steel-membrane-based pressure sensors). In addition, the device can interface to a separate temperature sensor. The bi-directional

Download ZSC31050FIG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

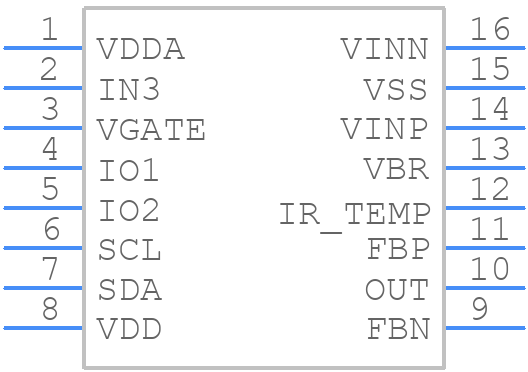

Symbol
ZSC31050FIG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31050FIG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PYG16-1
click to zoom
3D Models
ZSC31050FIG1-R - Renesas Electronics - 3D model - Small Outline Packages - PYG16-1
click to zoom

ZSC31050FIG1-R Details

  • Manufacturer Part Number:

    ZSC31050FIG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PYG16

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    26 Weeks, 1 Day

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    DIFFERENTIAL SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ZSC31050FIG1-R Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZSC31050FIG1-R involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • Calibration of the ZSC31050FIG1-R involves adjusting the internal offset and gain registers to compensate for any deviations from the ideal transfer function. This can be done using the device's built-in calibration registers or through external calibration using a microcontroller or other external device.
  • The ZSC31050FIG1-R is rated for operation over a temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the ZSC31050FIG1-R can be used in a multi-channel configuration by connecting multiple devices in parallel or using a single device with multiple analog input channels. However, this may require additional external circuitry and careful PCB layout to minimize crosstalk and ensure optimal performance.
  • The recommended power supply voltage for the ZSC31050FIG1-R is 3.3V or 5V, with a maximum tolerance of ±10%. It's also recommended to use a low-dropout regulator (LDO) to ensure a stable power supply voltage.
