The recommended PCB footprint for the ZXMHC10A07N8TC is a standard SOT23 package with a 1.3mm x 1.3mm body size and a 0.5mm pitch. The datasheet provides a recommended land pattern and soldering guidelines.
To ensure proper biasing, follow the recommended operating conditions and biasing circuits provided in the datasheet. Typically, a voltage regulator or a resistive divider network is used to set the input voltage and current limits.
The maximum power dissipation of the ZXMHC10A07N8TC is 250mW. However, it's essential to consider the thermal resistance, junction temperature, and ambient temperature to ensure the device operates within safe limits.
The ZXMHC10A07N8TC is rated for operation up to 125°C. However, it's crucial to consider the device's thermal characteristics, such as thermal resistance and junction temperature, to ensure reliable operation in high-temperature environments.
To protect the ZXMHC10A07N8TC from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider implementing ESD protection circuits in your design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXMHC10A07N8TC Overview

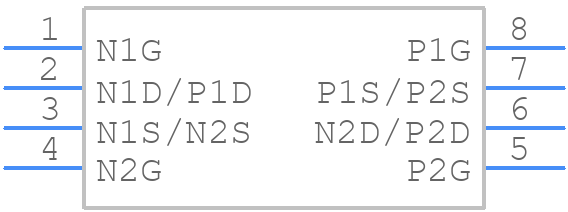

Use the download button to access the ZXMHC10A07N8TC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXMHC,
or try a keyword search, such as Small Signal Field-Effect Transistors
