A recommended PCB layout for optimal thermal performance would be to use a thermal pad on the bottom of the package, connected to a large copper area on the PCB. This helps to dissipate heat efficiently. Additionally, it's recommended to use a minimum of 2oz copper thickness and to avoid routing high-current traces under the device.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. It's also crucial to ensure good airflow and to avoid overheating the device.
The ZXMN6A09KTC has an ESD rating of Human Body Model (HBM) ≥ 2kV and Machine Model (MM) ≥ 200V. To prevent ESD damage, handle the device with an anti-static wrist strap or mat, and avoid touching the pins or leads. Store the device in an anti-static bag or container when not in use.
The ZXMN6A09KTC is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. However, it's essential to consult with Diodes Incorporated or a qualified representative to discuss specific requirements and ensure the device meets the necessary standards and regulations.
The recommended soldering technique for the ZXMN6A09KTC is reflow soldering with a peak temperature of 260°C (500°F) for 10-30 seconds. For assembly, use a solder paste with a melting point above 217°C (423°F). Ensure the PCB is clean and dry before assembly, and avoid applying excessive force or pressure during the soldering process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXMN6A09KTC Overview

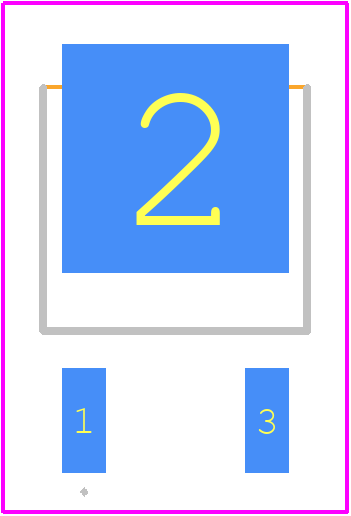

Use the download button to access the ZXMN6A09KTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXMN6,
or try a keyword search, such as Small Signal Field-Effect Transistors
