ZXMS81045SPQ-13 - Diodes Incorporated

Description: MOSFET High Side IntelliFET SO-8EP T&R 2.5K

Download ZXMS81045SPQ-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

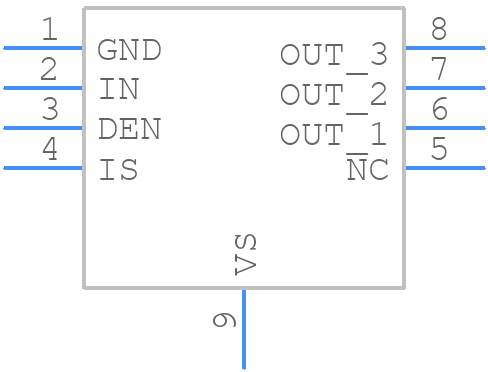

ZXMS81045SPQ-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
ZXMS81045SPQ-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8EP (Type E)
click to zoom
3D Models
ZXMS81045SPQ-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-8EP (Type E)
click to zoom

ZXMS81045SPQ-13 Details

  • Manufacturer Part Number:

    ZXMS81045SPQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.63 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ZXMS81045SPQ-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZXMS81045SPQ-13 should include a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a solid ground plane to reduce thermal resistance.
  • To ensure proper biasing, the ZXMS81045SPQ-13 requires a stable input voltage (VIN) between 2.7V and 5.5V. The device also requires a bypass capacitor (CBYP) between VIN and GND to filter out noise and ensure stable operation.
  • The maximum allowed power dissipation for the ZXMS81045SPQ-13 is 1.4W. Exceeding this limit can cause the device to overheat, leading to reduced performance or even damage.
  • To protect the ZXMS81045SPQ-13 from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the PCB is designed with ESD protection in mind, including the use of ESD-protection diodes and resistors.
  • The recommended operating temperature range for the ZXMS81045SPQ-13 is -40°C to 125°C. Operating the device outside this range can affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZXMS81045SPQ-13 Overview

Use the download button to access the ZXMS81045SPQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXMS8, or try a keyword search, such as Power Management Circuits
