ZXTC6718MCTA - Diodes Incorporated

Description: Bipolar Transistors - BJT Comp Dual 20V 20V 4.5A IC 47mOhm

Download ZXTC6718MCTA Model
Schematic

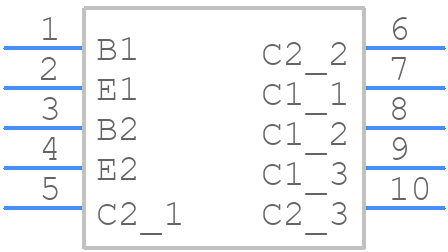

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ZXTC6718MCTA - Diodes Incorporated PCB footprint - Other - Other - ZXTC6718MCTA-3
click to zoom
3D Models
ZXTC6718MCTA - Diodes Incorporated  - 3D model - Other - ZXTC6718MCTA-3
click to zoom

ZXTC6718MCTA Details

  • Manufacturer Part Number:

    ZXTC6718MCTA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    GREEN, PLASTIC, DFN3020B-8, 8 PIN

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    4.5 A

  • Collector-Emitter Voltage-Max:

    20 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    140 MHz
