The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to prevent damage to the capacitor.
Yes, the 106TTA063M is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which involves sinusoidal vibration at 10-2000 Hz with an amplitude of 1.5 mm.
The 106TTA063M is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which involves exposure to 85°C (185°F) and 85% relative humidity for 1000 hours.
The ESR of the 106TTA063M is not explicitly stated in the datasheet, but it can be estimated to be around 0.02 ohms based on the capacitor's construction and materials.
Yes, the 106TTA063M is suitable for use in DC-DC converter applications due to its low ESR, high ripple current rating, and high reliability. However, it's essential to ensure that the capacitor is properly sized and derated for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
106TTA063M Overview

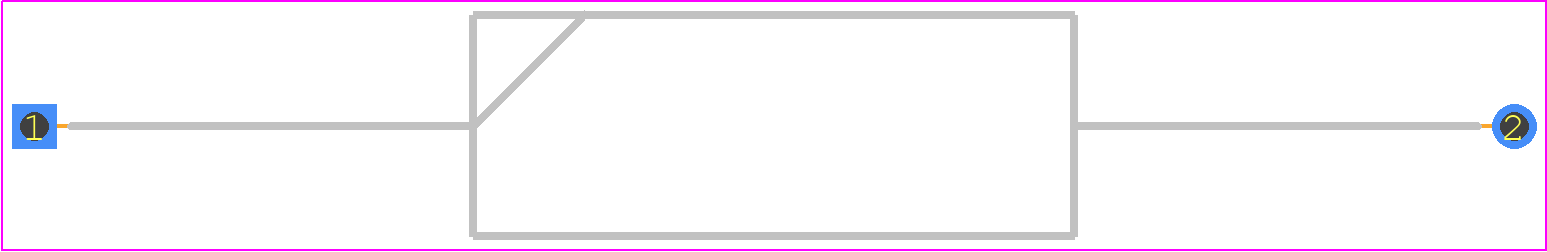

Use the download button to access the 106TTA063M schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 106TT,
or try a keyword search, such as Aluminum Electrolytic Capacitors
