The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to ensure the capacitor's reliability and performance.
Yes, the 106TTA100M is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which involves sinusoidal vibration at 10-2000 Hz with an amplitude of 1.5 mm. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress.
The 106TTA100M is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which involves exposure to 85°C (185°F) and 85% relative humidity for 1000 hours. However, it's essential to follow proper storage and handling procedures to prevent moisture absorption.
Yes, the 106TTA100M is suitable for high-altitude applications. It's designed to operate up to 80,000 feet (24,384 meters) above sea level. However, it's crucial to consider the effects of altitude on the capacitor's performance, such as reduced capacitance and increased equivalent series resistance (ESR).
Cornell Dubilier recommends derating the 106TTA100M by 1.25% per °C above 85°C (185°F) to ensure reliable operation. This means that if the capacitor is operated at 105°C (221°F), the voltage rating should be reduced by 25% to prevent overheating and premature failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
106TTA100M Overview

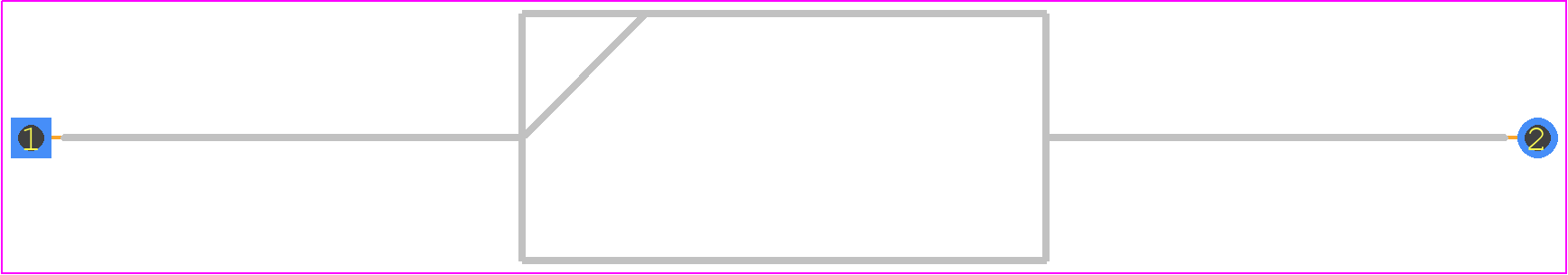

Use the download button to access the 106TTA100M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 106TT,
or try a keyword search, such as Aluminum Electrolytic Capacitors
